The specific load F
Uspez
is the maximum load which one single
belt tooth 1 cm wide can withstand in all operating conditions.
This force is related to the drive rpm.
The total load F
U
transmissible by the belt in the dr ive is
calculated by:
F
U
[N] = F
Uspez
•
z
e
•
b
F
U
[N]
= peripheral force
F
Uspez
[N/cm] = specific load
z
e
= number of teeth in mesh in the small pulley
z
emax
= max. no of teeth in mesh to be considered
for the calculation of the drive
z
emax
= 12 for ELATECH
®
M
z
emax
= 6 for ELATECH
®
V
b [cm]
= belt width in cm
HTD3M
Belt characteristics
• Polyurethane timing belt with round tooth profile and high ten-
sile load tension cords. Produced according to ISO 13050
• Metric pitch 3 mm
• The round tooth profile allows a uniform load distribution that
guarantees high performances, high transmissible torque and
precise tooth engagement.
• Widely used in linear positioning, light power transmission
applications.
• Width tolerance: ±0,5 [mm]
• Length tolerance: ±0,5 [mm/m]
• Thickness tolerance: ±0,2 [mm]
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
Belt width
b
[mm]
Allowable
tensile load
Type M
F
Tzul
[N]
Allowable
tensile load
Type V
F
Tzul
[N]
Breaking
load
Type M
F
Br
[N]
Specific
spring rate
Cspez
[N]
Weight
[kg/m]
10
15
25
50
100
300
480
780
1560
3300
75000
120000
195000
390000
825000
1250
2000
3250
6500
13750
150
240
390
780
1650
0,02
0,03
0,05
0,10
0,20
Tooth shear strength
Other widths are available on request.
0
25,20
20
24,60
40
24,06
60
23,57
80
23,12
100
22,72
200
21,22
300
20,31
400
19,75
500
19,14
600
18,50
700
17,88
Technical data
4500 7,05
5000 6,32
5500 5,66
6000 5,04
6500 4,47
7000 3,94
7500 3,44
8000 2,98
8500 2,54
9000 2,12
9500 1,72
10000 1,35
1900 12,67
2000 12,36
2200 11,77
2400 11,22
2600 10,71
2800 10,24
3000 9,79
3200 9,36
3400 8,96
3600 8,57
3800 8,21
4000 7,86
800
17,30
900
16,75
1000 16,24
1100 15,75
1200 15,29
1300 14,86
1400 14,45
1440 14,29
1500 14,06
1600 13,69
1700 13,33
1800 12,99
Tooth shear strenght / rpm

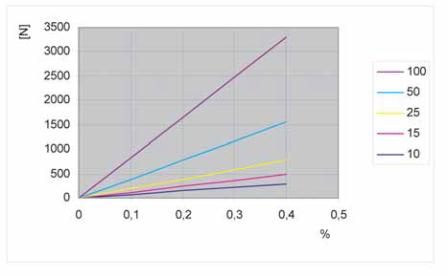

Load / Elongation [ % ]
F
Uspez [N/cm]
