32
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
rpm
F
Uspez
[N/cm]
Belt width
b
Code
/
mm
Allowable
tensile load
Type M
F
Tzul
[N]
Allowable
tensile load
Type V
F
Tzul
[N]]
Breaking
load
Type M
F
Br
[N]
Specific
spring rate
Cspez
[N]
Weight
[kg/m]
100 / 25,4
200 / 50,8
300 / 76,2
400 / 101,6
3520
7040
10560
14080
880000
1760000
2640000
3520000
15200
30400
45600
60800
1760
3520
5280
7040
0,26
0,54
0,80
1,06
Tooth shear strength
Other widths are available on request.
0
96,00
20
92,98
40
90,27
60
87,85
80
85,68
100
83,73
200
74,80
300
69,42
400
65,53
500
62,48
600
59,97
700
57,84
XH
Technical data
4000 33,31
1900 43,86
2000 43,14
2200 41,79
2400 40,56
2600 39,43
2800 38,37
2880 37,98
3000 37,40
3200 36,48
3400 35,62
3600 34,81
3800 34,04
800
55,99
900
54,35
1000 52,88
1100 51,55
1200 50,33
1300 49,20
1400 48,16
1440 47,77
1500 47,19
1600 46,29
1700 45,43
1800 44,62

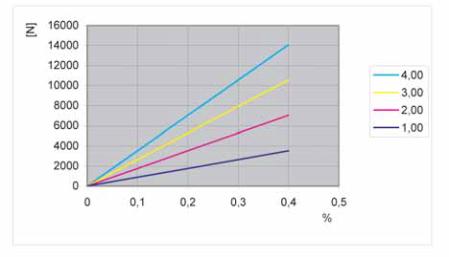

Load / Elongation [ % ]

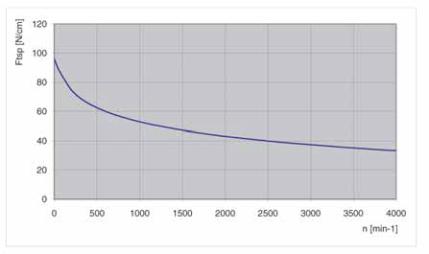

Tooth shear strenght / rpm
Belt characteristics
• Polyurethane t iming bel t wi th trapezoidal tooth prof i le
according to DIN/ISO 5296 with steel tension cords.
• Imperial pitch 7/8” = 22,225 mm
• Mainly used in applications where inch pitch is an advantage
(USA / UK)
• Width tolerance: ±1,0 [mm]
• Length tolerance: ±0,5 [mm/m]
• Thickness tolerance: ±0,4 [mm]
The specific load F
Uspez
is the maximum load which one single
belt tooth 1 cm wide can withstand in all operating conditions.
This force is related to the drive rpm.
The total load F
U
transmissible by the belt in the dr ive is
calculated by:
F
U
[N] = F
Uspez
•
z
e
•
b
F
U
[N]
= peripheral force
F
Uspez
[N/cm] = specific load
z
e
= number of teeth in mesh in the small pulley
z
emax
= max. no of teeth in mesh to be considered
for the calculation of the drive
z
emax
= 12 for ELATECH
®
M
z
emax
= 6 for ELATECH
®
V
b [cm]
= belt width in cm
F
Uspez [N/cm]
