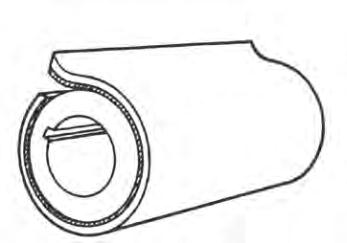

Fig. 32
Sheet-Wrap Method of Applying Vulcanized Lagging
Fig. 33
Typical Herringbone Grooved Pulley Lagging
Fig. 34
Slide-Lag™ Replaceable Pad Pulley Lagging
Slide-Lag™ Trademark and Patent by
Holz Rubber Company, Lodi, California.
Fig. 30
Dovetailed Ends of Bolted Pulley Lagging
“A”
Pulley
1
1
/
2
"
2"
Bolts
Pulley CTSK
L
C
C
2"
2"
L = length of strip
C = pulley circumference
W = pulley width
CxW
L = –––––––– + C
4

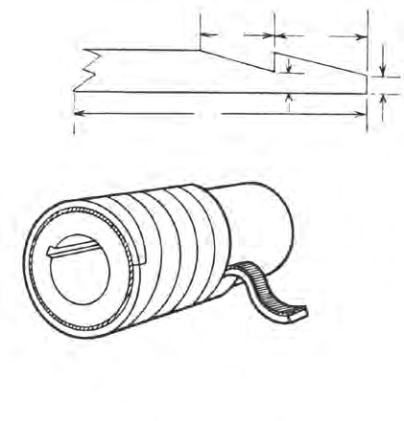

Fig. 31
Spiral-Wrap Method of Applying Vulcanized Lagging
22
