Page 5 - GoodyearLightweightBeltBrochure

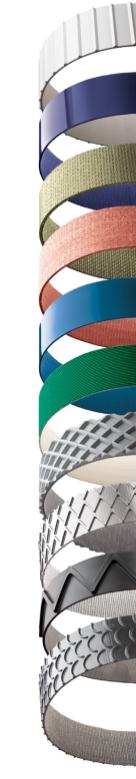

Kleated
(meat)
Smooth
Cover
Friction
Coating
Brushed
(friction)
Skim Coating
Groovy
Incline Top
*
Waffletop
Z-Belt Mini
TM
Z-Belt Large
TM
Eclipse
TM
PVG ™ Moderate Oil Resistance, Fire Retardant
and Low Temperature
• Offers moderate oil resistance with
excellent slider abrasion.
• Static dissipative compound
- Belts manufactured with PVG covers on both sides
meet OSHA requirements (300 megohms or less).
• Fire retardancy that meets MSHA test 30-18.65.
• Cold temperature characteristics to -20 F ° under
intermittent conditions.
• Ideal for conveying fertilizers, oily products,
grains, wood products, animal feeds,
agriculture and produce.
• Also available in PVLT, with cold temperature
characteristics to -40°F under
intermittent conditions.
PVC Standard Interwoven PVC
• High-molecular PVC formula provides
durability, versatility and value in the
inter-woven family of belts.
• PVC also available in:
- PVS = Soft Durometer PVC
- PVH = Hard Durometer PVC
PVA™ Static Dissipative Plied Monofilament PVC
• PVA cover compound combined with static
dissipative monofilament fabric keeps electric
charge out of product being conveyed.
• Ideal for package handling, wood products,
plastic parts, weigh scales, checkouts,
treadmills and textiles.
MSHA Underground Mining
• Designed for use in underground coal mines.
• Fire retardancy that meets MSHA test 30-18.65.
QPH™ Quiet Package Handling PVC
• Uniquely quiet compound coupled with our
low-noise whisper-weave fabrics.
• For operations where low noise level is
required and reliable performance is
mandatory.
• Constructed with HPC™ Technology in multi-
plied and Interwoven Plus constructions.
• Excellent for use in postal facilities, parcel
terminals, distribution warehousing, airports,
automotive plants and lumber mills.
UMVS™ Ultra Modified,
Low Durometer Vinyl
• A very elastic cover compound providing a
high coefficient of friction top surface.
• Surface under compression is excellent
for incline conveying, capable of handling
angles up to 45° in some applications.
• Perfect for conveying in distribution centers,
airports, parcel handling facilities, laundries
and printing facilities.
TPU™ Thermoplastic Clear Urethane
• Durable urethane cover has excellent
resistance to vegetable, animal
and mineral oils, plus many chemicals.
• Resists abrasion, cutting, gouging
and punctures.
• Ideal for use in industries such as metal
stamping, recycling, wood products, glass,
brick extrusion and die cast parts.
Goodyear’s unique
Homogenous Plied
Construction (HPC™) opens
the door to a world of long-lasting
advantages. Allowing us to put up to
4 plies together in one pass, HPC
Technology results in a belt that will lay
flat and provide superior tracking, plus:
• a more solid carcass
• less potential for delamination
• outstanding resistance to even the most
rugged environments
* Magnified to show texture.
