20MM SOLID SHAFT
1" SOLID SHAFT REDUCED
TO 25 MM AT BEARING
1-1/4" SHAFT REDUCED
TO 3/4" AT BEARING
3/4" SOLID SHAFT
17 MM SOLID SHAFT

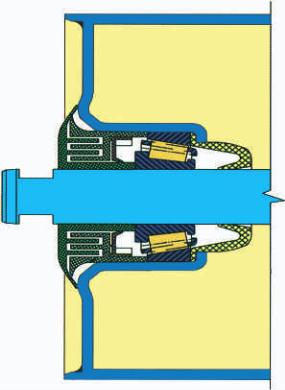

B Series Roll Design Features
Flinger
Exterior
Shield
Grease
Filled Multi-Path
Labyrinth
Contact
Seal
Back Seal
20 mm 6304
Ball Bearing
3/4” Tapered
Roller Beari
Inner Shield
Grease Filled
Horizontal
Labyrinth
Exterior Outer Shield
17mm Ball Bearing
Interference Press Fit
Flinger
Exterior
Shield
Grease
Filled Multi-Path
Labyrinth
Contact Seal
C Series Roll Design Features
D Series Roll Design Features
Flinger
Exterior
Shield
Grease Filled
Multi-Path
Labyrinth
Contact Seal
Back Seal
Flinger
Exterior
Shield
Grease Filled
Multi-Path
Labyrinth
Contact Seal
Special 25 mm
6305 Ball Bearing
3/4” Tapered
Roller Bearing
