45
Products

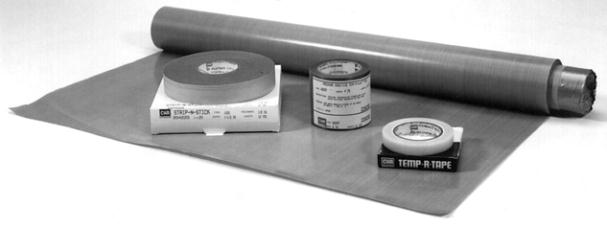

100S Strip-n-Stick®
Manufactured from CHR’s COHRlastic® silicone rubber, in pressure sensitive
tape form as a closed cell sponge. Sticks instantly without heat, water, or solvent
catalyst. Pressure sensitive adhesive has excellent bond strength, yet can be
easily removed. Silicone rubber has a unique chemical structure which gives it
high temperature stability and overall inertness unavailable in any other
elastomer. Excellent compression set resistance, electrical strength, and clean
release. Tensile strength 65 PSI. Temperature range: -100°F to +500°F.
Elongation 25%.
Temp-R-Glas®
Fabrics,
Premium Grade
Teflon® TFE impregnated fiberglass cloth.
Combines a Teflon® surface with a variety of
woven fabrics yielding a material that is tough,
abrasion resistant, dimensionally stable and operational in both high and low temperature environments. Excellent
break and tear strengths. Universal chemical inertness. Fiberglass restricts Teflon® cold flow and permits its use under
compression load applications including conveyor belts (especially in high temperature environments), release surface
and bleeding cloth in loading shops, and as an electrical laminate. Temperature range: -240°C to +316°C.
STYLE 12C3TB
STYLE 12C5TB
STYLE 12C6TB
STYLE 12C10TB
STYLE 12C100S Size Part Number
1/16" x 1/2" x 10YD 12C100S062x1/2
1/8" x 1/2" x 10YD 12C100S125x1/2
3/16" x 1/2" x 5YD 12C100S187x1/2
1/16" x 3/4" x 10YD 12C100S062x3/4
3/32" x 3/4" x 10YD 12C100S093x3/4
1/8" x 3/4" x 10YD 12C100S125x3/4
3/16" x 3/4" x 5YD 12C100S187x3/4
1/16" x 1" x 10YD 12C100S062x1
1/8" x 1" x 10YD 12C100S125x1
3/16" x 1" x 5YD 12C100S187x1
1/8" x 1 1/2" x 10YD 12C100S125x1 1/2
3/16" x 1 1/2" x 5YD 12C100S187x1 1/2
1/16" x 2" x 10YD 12C100S062x2
1/8" x 2" x 10YD 12C100S125x2
3/16" x 2" x 5YD 12C100S187x2
Approx. Width/ Approx. Weight Avg Dielectric Strength
Thickness Length (lbs/yd2) (volts/mil. 1/4" electrodes) Part Number
.003" 36" x 36 YD. .250 550 12C3TB
.005" 36" x 36 YD. .440 450 12C5TB
.006" 36" x 36 YD. .540 600 12C6TB
*.008" 36" x 36 YD. .690 450
.010" 36" x 36 YD. .900 500 12C10TB
Temp-R-Glas®
Fabrics,
Premium Grade
Same as above Standard Grade, but with
higher lbs/yd2 weights and dielectric strengths.
Useful as slot liners in motors and as high
temperature cable insulation.
STYLE 12C3TA
STYLE 12C5TA
* Not anAmerican Packing stock item. Special order.
Approx. Width/ Approx. Weight Avg Dielectric Strength
Thickness Length (lbs/yd2) (volts/mil. 1/4" electrodes) Part Number
.003" 36" x 36 YD. .270 600 12C3TA
.005" 36" x 36 YD. .505 500 12C5TA
*.006" 36" x 36 YD. .570 650
*.008" 36" x 36 YD. .755 500
*.010" 36" x 36 YD. .980 550
* Not anAmerican Packing stock item. Special order.
