Page 34 - Gaskets&PackingMaterialsCatalog2010

24

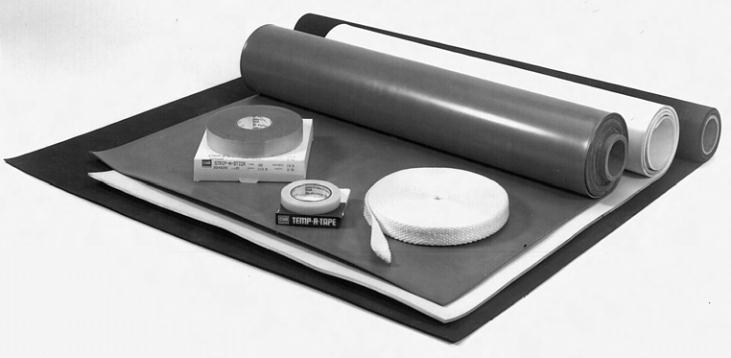

Sheet
Materials
and Tapes
Non-Asbestos Gasket Materials
Nitrile bound non-asbestos gasket material. Displays good torque retention and
excellent creep resistance. Good resistance to oil, solvents, and many other
media. Tensile strength 1700 psi typical (ASTM F152 Cross Grain). Change in
tensile strength 25%maximum decrease (ASTM F152).
STYLE 0CNA-750 CNA-750 Compressed Non-Asbestos Gasket Material
CNA-750
Pressure and
Temperature
Graphs
Size Part Number
1/64" X 60" X 180" 0CNA750015X60X180
1/32" X 60" X 180" 0CNA750031X60X180
1/16" X 60" X 180" 0CNA750062X60X180
1/8" X 60" X 180" 0CNA750125X60X180
Note: Longest lengths stocked by American Packing are
indicated. Shorter lengths always available.
In area one, the gasket material is suitable using common installation practices subject to chemical compatibility.
In area two, appropriate measures are necessary for installation of the gasket to insure maximum performance.
Please call American Packing or Thermoseal Technical Support Service for assistance.
In area three, DO NOT INSTALL GASKETS in these applications without first contacting American Packing or
Thermoseal Technical Support Service.
Liquids Gases and Steam
