Mechanical Seal Components

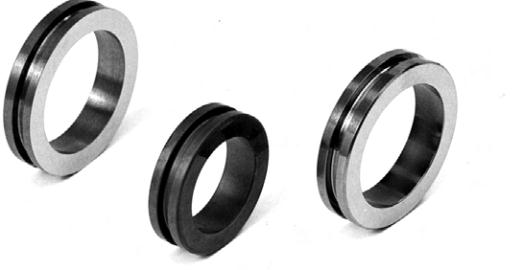

O-Ring Groove Seats
STYLE MSSORGCE
Ceramic (99.5%Purity)
Color
Ivory
Density
3.90 g/cm3
Grain Size (Avg.)
3.0 microns
Hardness Rockwell (45N)
84
Compressive Strength
2600 MPa
STYLE MSSORGTC
Tungsten Carbide (6%Nickel Binder)
Density
14.90 g/cm3
Hardness Rockwell A
90.5 - 92.0
Minimum Transverse
Rupture Strength
250,000 psi
Compressive Strength
610,000 psi
Grain Size
1-3 microns
STYLE MSSORGSC
Silicon Carbide (Sintered Alpha)
Density
3.10 g/cm3
Hardness (Knoop - 1000 gm load)
2800 Kg/mm2
Grain Size
4-6 microns
Compressive Strength
3900 MPa
@RT
560 x 103 lb/in2
Modulus of Elasticity
410 GPa
@RT
59 x 106 lb/in2
O-RING GROOVE SEAT PART NUMBERS
SHAFT
SIZE
(Inches)
Ceramic
Tungsten
Carbide
Silicon
Carbide
3/4
"
MSSORGCE0750 MSSORGTC0750 MSSORGSC0750
7/8
"
MSSORGCE0875 MSSORGTC0875 MSSORGSC0875
1
"
MSSORGCE1000 MSSORGTC1000 MSSORGSC1000
1-1/8
"
MSSORGCE1125 MSSORGTC1125 MSSORGSC1125
1-1/4
"
MSSORGCE1250 MSSORGTC1250 MSSORGSC1250
1-3/8
"
MSSORGCE1375 MSSORGTC1375 MSSORGSC1375
1-1/2
"
MSSORGCE1500 MSSORGTC1500 MSSORGSC1500
1-5/8
"
MSSORGCE1625 MSSORGTC1625 MSSORGSC1625
1-3/4
"
MSSORGCE1750 MSSORGTC1750 MSSORGSC1750
1-7/8
"
MSSORGCE1875 MSSORGTC1875 MSSORGSC1875
2
"
MSSORGCE2000 MSSORGTC2000 MSSORGSC2000
2-1/8
"
MSSORGCE2125 MSSORGTC2125 MSSORGSC2125
2-1/4
"
MSSORGCE2250 MSSORGTC2250 MSSORGSC2250
2-3/8
"
MSSORGCE2375 MSSORGTC2375 MSSORGSC2375
2-1/2
"
MSSORGCE2500 MSSORGTC2500 MSSORGSC2500
2-5/8
"
MSSORGCE2625 MSSORGTC2625 MSSORGSC2625
2-3/4
"
MSSORGCE2750 MSSORGTC2750 MSSORGSC2750
2-7/8
"
MSSORGCE2875 MSSORGTC2875 MSSORGSC2875
3
"
MSSORGCE3000 MSSORGTC3000 MSSORGSC3000
3-1/8
"
MSSORGCE3125 MSSORGTC3125 MSSORGSC3125
3-1/4
"
MSSORGCE3250 MSSORGTC3250 MSSORGSC3250
3-3/8
"
MSSORGCE3375 MSSORGTC3375 MSSORGSC3375
3-1/2
"
MSSORGCE3500 MSSORGTC3500 MSSORGSC3500
3-5/8
"
MSSORGCE3625 MSSORGTC3625 MSSORGSC3625
3-3/4
"
MSSORGCE3750 MSSORGTC3750 MSSORGSC3750
3-7/8
"
MSSORGCE3875 MSSORGTC3875 MSSORGSC3875
4
"
MSSORGCE4000 MSSORGTC4000 MSSORGSC4000
SHAFT
SIZE
(Inches)
Ceramic
Tungsten
Carbide
Silicon
Carbide
