C-1
Contents
Gasketing Products
Introduction ........................................................ C-2
Quick Reference Selection Guide...................... C-3
Compressed Inorganic Fiber Gasketing ............ C-4
Style ST-706 ................................................ C-5
Styles IFG® 5500 and 5507 ......................... C-5
High Temp Compressed Graphite or
Carbon Fiber Gasketing................................... C-6
Style G-9900................................................ C-7
Styles 9800, 9850........................................ C-7
BLUE-GARD® Compressed Gasketing.............. C-8
Styles 3000 to 3700..................................... C-9
Styles 2900 / 2950 Gasketing............................. C-9
AGRI-GARD™ Style 2676 ............................... C-10
LEAK-GARD™ Style 3750............................... C-10
MULTI-SWELL™ Style 3760 ........................... C-10
GYLON® Gasketing.......................................... C-11
Styles 3500, 3504, 3510............................ C-13
Style 3530.................................................. C-13
Style 3535 Joint Sealant............................ C-13
Style 3540.................................................. C-14
Style 3545.................................................. C-14
Styles HP 3560, HP 3561.......................... C-15
Style 3565 ENVELON® ............................. C-15
Style 3522 Diaphragm Material ................. C-17
Welded GYLON® ...................................... C-17
STRESS SAVER® Gasketing ........................... C-16
GRAPH-LOCK® Gasketing .............................. C-18
Style 3128 HOCHDRUCK® ........................ C-18
Styles 3120 to 3128................................... C-19
Premium Grade Rubber Gasketing.................. C-20
Styles 22, 7797, 7986, 8314,
9064, 9122, 9518, 9520, 9780 .................. C-21
Reinforced Rubber Gasketing & Diaphragm.... C-22
Styles 19, 7992, 8798, 9200...................... C-22
Vegetable Fiber Gasketing............................... C-23
Styles 660, 670, 681.................................. C-23
Engineering Data
Factors Affecting Gasket Performance ............ C-24
Gasket Selection.............................................. C-24
Chemical Resistance Chart ............................. C-26
Sheet Sizes and Tolerances ............................ C-39
"M" and "Y" Data .............................................. C-40
Gasket Constants ............................................ C-40
ASTM F104 Line Callouts ................................ C-41
Bolting and Flange Information ........................ C-42
Before Installation ............................................ C-43
Installation........................................................ C-43
Gasket Assembly Stress Recommendations ... C-43
Torque and Stress Tables ................................ C-44
Gasket Design Tips.......................................... C-48
Gasketing Terms .............................................. C-49
Test Procedures ............................................... C-54
Test Equipment ................................................ C-57
Application Data Form ..................................... C-58

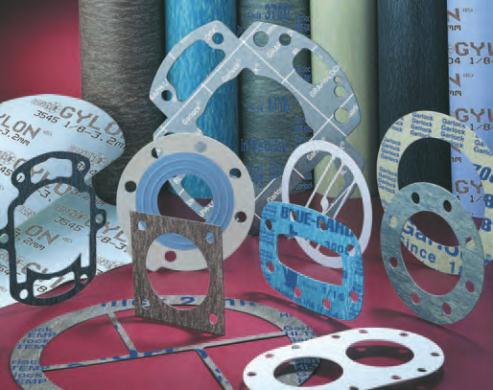

Garlock Gasketing
GasketsGaskets
Garlock
®
AGRI-GARD™, LEAK-GARD™, and Multi-Swell™ are trademarks of
Garlock Inc.
BLUE-GARD ®, ENVELON® , GRAPH-LOCK®, GYLON® , IFG® , and
STRESS SAVER® are registered trademarks of Garlock Inc.
