5
AVAILABLE GASKET MATERIALS
METAL WINDING STRIP
AS STANDARD
Stainless Steel 304
type 316L
OTHERS
Stainless Steel
type 304L
309
310
316Ti
317L
321
347
430
17-7PH
ALLOY 20
MONEL ®
TITANIUM ®
NICKEL ® 200
INCONEL ® 600
625
X-750
HASTELLOY ® B2
C276
INCOLOY ® 800
825
DUPLEX
ZIRCONIUM®
TANTALUM ®
COPPER
PHOS-BRONZE
CARBON STEEL
FILLER MATERIAL
Flexicarb® flexible graphite
Thermiculite™
Flexite Super®
PTFE
Mica
Ceramic
Non-sintered PTFE
Thermiculite, FLEXITALLIC’S new high-
temperature, sealing material is comprised
of chemically exfoliated and thermally
exfoliated vermiculite.
This revolutionary new product simulates
the structure of exfoliated graphite but with
one notable exception… gaskets made with
Thermiculite maintain their integrity, even at
extreme temperatures.
Thermiculite is thermally stable, ensuring
against thermal oxidation, at temperatures
in excess of 1600ºF.
GUIDE RING MATERIAL
AS STANDARD
Carbon Steel
OTHERS
Stainless Steel
type 304
304L
316
316L
316Ti
310
321
347
410
INCONEL® 600
625
MONEL ®
TITANIUM®
NICKEL
INCOLOY® 800
ALLOY 20
INCOLOY ® 825
HASTELLOY ® B-2
C276
NOTE
Selected materials should be compatible with operating temperature and chemicals.
If in doubt, contact Flexitallic Technical Department.
PTFE:
If PTFE is subjected to temperatures above 250ºC (500ºF) decomposition starts to occur slowly, increasing
rapidly above 400ºC (750ºF). Care should be taken to avoid inhaling the resultant fumes, which may produce
hazardous effects.

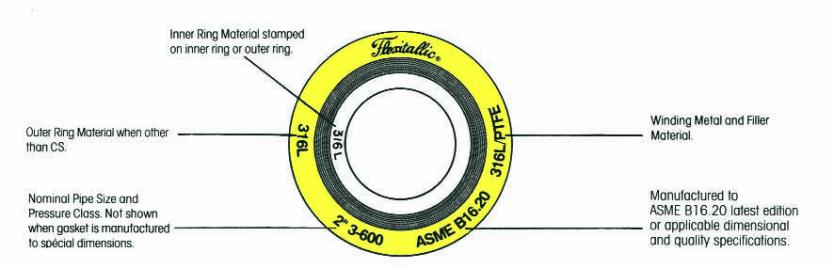

IDENTIFICATION REQUIREMENTS
