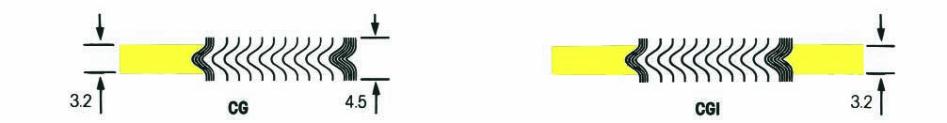

STYLE CG & CGI
TO SUIT DIN FLANGES PN 10-PN 250
TABLE
13
The use of on inner ring is recommended for gaskets for use with PN100 Flanges and above.
Gasket dimensions are available to suit PN320 Flanges, consult the technical department.
DIMENSIONS IN mm.
10 18 24 36 36 46 46 46 46 56 56 56 67
15 24 30 42 42 51 51 51 51 61 61 61 72
20 27 33 47 47 61 61 61 61 72 72 – –
25 34 40 54 54 71 71 71 71 82 82 82 83
32 44 50 66 66 82 82 82 82 87 87 – –
40 51 57 73 73 92 92 92 92 103 103 103 109
50 59 69 87 87 107 107 107 107 113 119 119 124
65 73 83 103 105 127 127 127 127 138 144 144 154
80 87 97 117 121 142 142 142 142 148 154 154 170
100 114 124 144 148 162 162 168 168 174 180 180 202
125 140 150 172 176 192 192 194 194 210 217 217 242
150 168 178 200 204 217 217 224 224 247 257 257 284
175 189 199 225 231 247 247 254 265 277 287 284 316
200 220 230 256 262 272 272 284 290 309 324 324 358
250 269 279 307 315 327 328 340 352 364 391 388 442
300 319 329 357 365 377 383 400 417 424 458 458 538
350 365 375 405 413 437 443 457 474 486 512 – –
400 416 426 458 466 488 495 514 546 543 572 – –
500 520 530 566 574 593 617 624 628 657 704 – –
600 615 630 666 674 695 734 731 747 764 813 – –
700 715 730 770 778 810 804 833 852 879 – – –
800 815 830 874 882 917 911 942 974 988 – – –
900 915 930 974 982 1017 1011 1042 1084 1108 – – –
1000 1015 1030 1078 1086 1124 1128 1154 1194 1220 – – –
NOMINAL
PIPE SIZE
(DN)
INNER RING
INSIDE
DIAMETER
SEALING
ELEMENT
INSIDE DIAMETER
SEALING ELEMENT OUTSIDE DIAMETER
PN10-PN40 PN64-PN250 PN10 PN16 PN25 PN40
(DN)
PN64 PN100 PN160 PN250
