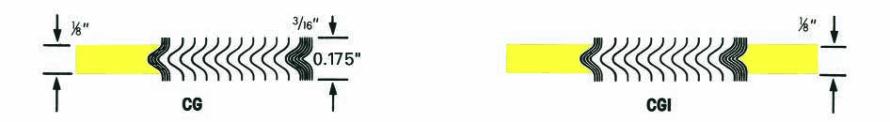

STYLE CG & CGI TO ASME B16.20
TO SUIT LARGE DIAMETER ASME B16.47 SERIES A FLANGES
CLASS 400-600-900
TABLE
7.1
NOTE:
There are no class 900 flanges NPS 50 and larger.
*lnner rings are mandatory for class 900 flanges, NPS 26 to 48.
For ASME B16.47 Series A flanges NPS 12 to 24 use gasket dimensions listed on page 10, for ASME B 16.5 flanges.
The above style CG gasket dimensions are also suitable for NPS 26 to 36 class 400 and 600 BS 3293 flanges.
DIMENSIONS IN INCHES.
