P R O D U C T H A N D B O O K
BELT CUTTERS
Please refer to Page 72.
SR-50 R5S
FBG1
INSTALLATIONTOOLS

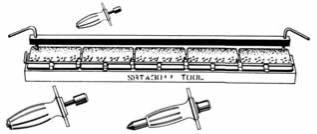

Single Rivet Applicator Tool
SRTAAPPLICATOR COMPLETE
(Includes one SR-50 Driver Tool Complete)
BELTWIDTH ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
in. mm
30” 750 SRTA-30 41213 35.0
36” 900 SRTA-36 41214 41.8
42” 1050 SRTA-42 41215 48.6
48” 1200 SRTA-48 41216 55.8
60” 1500 SRTA-60 41218 69.8
72” 1800 SRTA-72 41219 83.0
84” 2130 SRTA-84 41220 85.2
SINGLE RIVET DRIVER TOOL
DESCRIPTION ORDERINGNUMBER
ITEM
CODE
WT.
LBS.
Driver Tool Complete SR-50 40510 .8
Drive Rod SR5-7 40517 .3
RIVET SET*
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
R5S 40348 1.9
*If no SRTA Application Tool is available, fasteners may be
installed with an R5S Flexco Rivet Set. See Instruction Sheet
No. RH315.
FLEXCO® BELTGROOVER
(7/16”WIDE GROOVE PATH)
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
FBG1 31978 1.8
EXTRA BLADES
HSP3 31980 .1
METAL TOOL BOX FOR SR™ and BR™
APPLICATOR TOOLS
DESCRIPTION ORDERING NUMBER /
ITEMCODE
WT.
LBS.
36” Tool Box 40988 41.2
42” or 48” Tool Box 40990 48.2
60” Tool Box 40991 73.0
Stock Items (non-shaded) carried in factory inventory.
Made To Order Items (shaded) allow one week for production.
In most cases, the next standard stock item can be adapted to
meet your requirements.
Non-Listed Items are available.
Request quote for price and delivery.
FLEXCO® FSK ™ BELT SKIVER
Width of Skive 2 1/2” (64mm)
DESCRIPTION ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
Skiver Complete with Standard Blade FSK-1 31995 20.7
Skiver Complete with High-Wear Blade FSK-1A 32001 20.7
Sharpening Stone 31987 0.5
STK Tool Box 50009 5.4
REPLACEMENT PARTS
Skiver Blade-Standard FSK-1B 31996 0.3
Skiver Blade-HighWear FSK-1BA 31999 0.3
Skiver Ratchet Assembly FSK-1R 31991 1.8
Skiver Chain FSK-1C 31992 0.4
Skiver Sprocket FSK-1S 31993 0.2
Skiver Fence Assembly FSK-1F 31994 1.1
