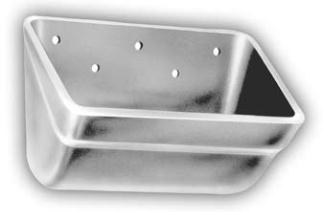

ALUMINUM ELEVATOR BUCKETS
STYLE AA BUCKETS
4 X 2-3/4
5 X 3-1/2
6 X 4
7 X 4-1/2
8 X 5
12 X 5
15 X 5
19 X 5
9 X 6
10 X 6
11 X 6
12 X 6
12 X 7
14 X 7
15 X 7
16 X 7
14 X 8
16 X 8
18 X 8
20 X 8
24 X 8
18 X 10
4
5
6
7
8
12
15
19
9
10
11
12
12
14
15
16
14
16
18
20
24
18
2-3/4
3-1/2
4
4-1/2
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
8
10
5/32
11/64
3/16
3/16
3/16
13/64
7/32
7/32
13/64
13/64
7/32
7/32
1/4
1/4
1/4
1/4
19/64
19/64
21/64
21/64
11/32
11/32
.009
.017
.029
.045
.061
.096
.122
.160
.093
.115
.128
.135
.185
.223
.232
.248
.286
.334
.378
.438
.522
.579
0.6
0.9
1.2
1.4
2.6
3.3
4.4
5.8
3.4
3.9
4.1
4.3
6.3
7.0
7.3
7.6
9.0
10.0
12.2
13.0
16.3
16.6
3
3-3/4
4-1/4
4-3/4
5-1/2
5-1/2
5-1/2
5-1/2
6-1/4
6-1/4
6-1/4
6-1/4
7-1/4
7-1/4
7-1/4
7-1/4
8-1/2
8-1/2
8-1/2
8-1/2
8-1/2
10-1/2
15.3
30.2
50.5
77.8
105.0
166.9
209.9
276.4
159.9
198.5
221.8
233.1
319.6
385.4
401.5
428.1
494.6
576.4
653.9
757.3
901.7
1001.1
Size
(Nominal)
Inches
Size
(Nominal)
Millimeter
120-70
140-90
160-120
180-120
200-140
300-140
370-140
480-140
230-160
260-160
280-160
300-160
300-180
350-180
260-180
280-180
350-215
400-215
450-215
500-215
600-215
450-260
.007
.013
.022
.034
.046
.072
.092
.120
.070
.086
.096
.101
.139
.167
.174
.186
.215
.251
.284
.329
.392
.434
11.5
22.6
37.9
58.4
78.8
125.2
157.4
207.3
119.9
148.9
166.4
174.8
239.7
289.1
301.1
321.1
371.0
432.3
490.4
568.0
676.3
750.8
Dimensions-Actual (Inches)
Tolerance A, B & C ±1/4" T ± 1/32"
Length
A
Proj.
B
Depth
C
Thickness
T
Gross X-X Usable
Cu. In. Cu. Ft. Cu. In. Cu. Ft.
Approx.
Weight
(Pounds)
Back View End View Back View
Capacity 1
Tolerance ± 3%
1 Tapco recommends using gross x .75, for usable capacity.
