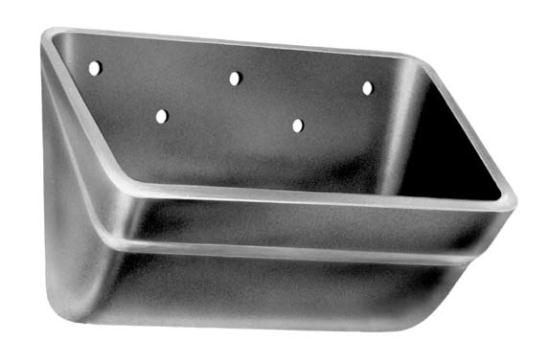

AA Elevator Bucket
INDUSTRIAL STYLE FOR HANDLING:
STONE, FOUNDRY SAND, SAND & GRAVEL, COAL, FERTILIZER, CLAY, SALT, ETC.
STYLE: AA.
DESIGN: Centrifugal discharge.
material: Ductile iron.
METHOD OF MANUFACTURE: Cast.
COLOR: Gray.
TEMPERATURE RANGE: -60° F to + 800° F. (-51° C to +426° C).
DRILLING: No charge for standard belt or chain drillings when order totals
50 or more pieces of the same size. Contact Tapco for quotation on
orders of less than 50 and/or special drill pattern requirements.
VENTING: Available on request. Contact Tapco for recommendations.
USABLE CAPACITY: Tapco recommends using 75% of gross,
(100%) capacity.
SPACING: A common spacing would be nominal projection plus 4",
however both closer and greater spacings may be used depending
upon the application.
INTERCHANGEABILITY: Can be intermixed with existing metallic or
nonmetallic buckets. Some care should be taken that the leg does not
become too far out of balance. Bucket projection varies by manufacturer
and material. Check elevator for proper clearances. Contact Tapco for
recommendations.
INSTALLATION: Fanged elevator bolts and nylon insert lock nuts are
recommended for pulleys 6" in diameter and over. No. 3 Eclipse slotted
head elevator bolts are recommended for pulleys under 6" in diameter.
Check elevator for proper clearances.
RECOMMENDATIONS: AA ductile iron buckets are ideal for use with
foundry sand, and gravel, coal, fertilizer, clay, salt, and many other
industrial materials.
CAUTION: Welding and cutting on elevator legs without taking
proper precautions is extremely dangerous and can cause a violent
explosion.
TECHNICAL INFORMATION:
22
SIZES
STYLE AA
CAST DUCTILE
IRON
FEATURES:
Excellent wear, impact and corrosion resistance, high strength to weight ratio.
DUCTILE IRON
