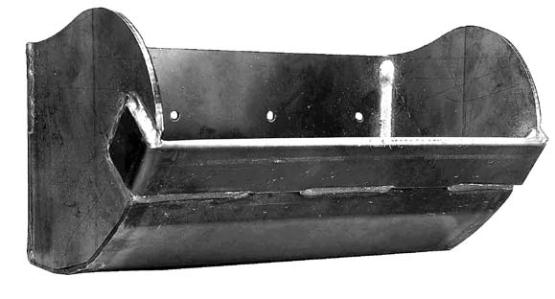

CC “digger” Elevator Bucket
AGRICULTURAL STYLE FOR HANDLING:
GRAIN, FEEDS, FERTILIZERS, Sugar, SALT, SAND,
SEED, Cement, and MINERAL MIXES
TECHNICAL INFORMATION
FEATURES:
Heavy gauge construction, reinforced corner braces and double thick lip designed
to aid in breaking up material in the boot section of the bucket elevator
40
SIZES
STYLE CC Digger
Carbon steel
or
stainless steel
STYLE: CC Digger.
DESIGN: High speed centrifugal discharge.
material: Carbon Steel or Stainless Steel.
METHOD OF MANUFACTURE: Fabricated.
CONSTRUCTION: The CC style digger bucket utilizes a 4-piece design
consisting of two end plates, pressed formed body, and wear lip.
Please note that there is no taper on the sides of the bucket with the
ends continuously welded on the outside. Tapco reserves the right
to change construction.
CONSTRUCTION OPTIONS: AR plating or hard bead weld.
MATERIAL THICKNESS: Carbon: 12 ga., 10 ga., Stainless: 12 ga.,
14 ga.
DRILLING: No charge for standard belt drillings.
VENTING: Vent ing avai lable on request , contact Tapco for
recommendations.
USABLE CAPACITY: Net or usable capacity could range from 10% to
20% above water level. For engineering purposes Tapco recommends
using WL (Water Level) + 10% for usable capacity.
SPACING: Minimum bucket spacing has historically been nominal
projection plus 2". Many style CC buckets, however, are being used
at projection plus 1", and some even closer. For engineering purposes
Tapco recommends using nominal projection plus 2".
INTERCHANGEABILITY: Can be intermixed with existing fabricated and
nonmetallic CC style buckets. If different weight buckets are mixed in,
some care should be taken that the leg does not become too far out
of balance. Check elevator for proper clearances. Contact Tapco for
recommendations.
INSTALLATION: Fanged elevator bolts and nylon insert lock nuts are
recommended for pulleys 6" in diameter and over. No. 3 Eclipse slotted
head elevator bolts are recommended for pulleys under 6" in diameter.
Flat steel washers must be placed inside the bucket under the
nuts. Check elevator for proper clearances.
CAUTION: Welding and cutting on elevator legs without taking
proper precautions is extremely dangerous and can cause a violent
explosion.
