800 SERIES
W
Y
X
BT
0
1
DEFLECTION (inch)
2 3
50
100
150
0
1
DEFLECTION (inch)
ENERGY ABSORPTION
(f
t - k i ps )
2 3
2
4
6
REACTION FORCE
(k i ps )
809
809

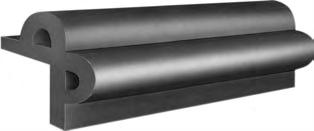

CORNER GUARD
The Duramax® Corner Guard fender is designed to
give optimal protection to 90 degree corners.
Extrusion has 2" wings for easy fastening.
Offered in three EPDM colors: black, non-marking grey and white.
CODE NO. DURAMAX® BASE WIDTH BASE THICKNESS WING LENGTH OUTSIDE DIAM. WT./FT. LENGTH
PART NO. (W) (BT) (X) (Y) UP TO
DB-809 802080901 5 9/16” 1 1/2” 2” 3” 21 LBS. 10 FT.
