600 SERIES
6"
W
H

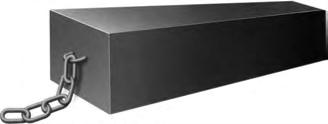

RECTANGULAR CHAIN
Unique Duramax
®
rectangular solid bumper is extruded with
a continuous chain throughout the length of the piece.
Standard leaders on ends are 6 inches long,
but longer lengths are available upon request.
CODE NO.
DURAMAX
®
BASE WIDTH
HEIGHT
CHAIN
WT./FT.
PROOF COIL CHAIN ALLOY CHAIN
PART NO.
(W)
(H)
SIZE
LOAD LIMIT
LOAD LIMIT
DB-604
802060401
5”
5”
1/2”
14 LBS.
4250 LBS.
11250 LBS.
DB-605
802060501
6 1/2”
5”
1/2”
18 LBS.
4250 LBS.
11250 LBS.
DB-606
802060601
6 1/2”
6”
1/2”
22 LBS.
4250 LBS.
11250 LBS.
DB-608
802060801
8”
8”
1/2”
36 LBS.
4250 LBS.
11250 LBS.
DB-609
802060901
10”
8”
5/8”
46 LBS.
6375 LBS.
16500 LBS.
DB-610
802061001
10”
10”
5/8”
65 LBS.
6375 LBS
16500 LBS.
DB-612
802061201
12”
12”
5/8”
85 LBS.
6375 LBS.
16500 LBS.
DB-614
802061401
14”
14”
5/8”
110 LBS.
6375 LBS.
16500 LBS.
16
700 SERIES
6"
D

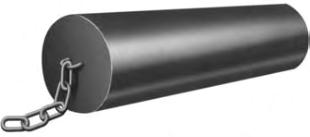

CYLINDRICAL CHAIN
Unique Duramax
®
cylindrical solid bumper is extruded with
a continuous chain throughout the length of the piece.
Standard leaders on ends are 6 inches long,
but longer lengths are available upon request.
CODE NO.
DURAMAX
®
OUTSIDE DIAM.
CHAIN
APPROX.
PROOF COIL CHAIN ALLOY CHAIN
PART NO.
(D)
SIZE
WT./FT.
LOAD LIMIT
LOAD LIMIT
DB-705
802070501
5”
1/2”
12 LBS.
4250 LBS.
11250 LBS.
DB-706
802070601
6”
1/2”
16 LBS.
4250 LBS.
11250 LBS.
DB-707
802070701
7”
1/2”
23 LBS.
4250 LBS.
11250 LBS.
DB-708
802070801
8”
5/8”
30 LBS.
6375 LBS.
16500 LBS.
DB-709
802070901
9”
5/8”
37 LBS.
6375 LBS.
16500 LBS.
DB-710
802071001
10”
3/4”
47 LBS.
9125 LBS.
23000 LBS.
DB-711
802071101
11”
3/4”
55 LBS.
9125 LBS.
23000 LBS.
DB-712
802071201
12”
1”
68 LBS.
12400 LBS.
38750 LBS.
D
-SHAPE / KEY BORE D-SHAPE / KEY BORE D-SHAPE / KEY BORE D-SHAPE / KEY BORE
EXTRUSION W/CHAIN
D-SHAPE / KEY BORE D-SHAPE / KEY BORE D-SHAPE / KEY B
