4
No drips, no spills

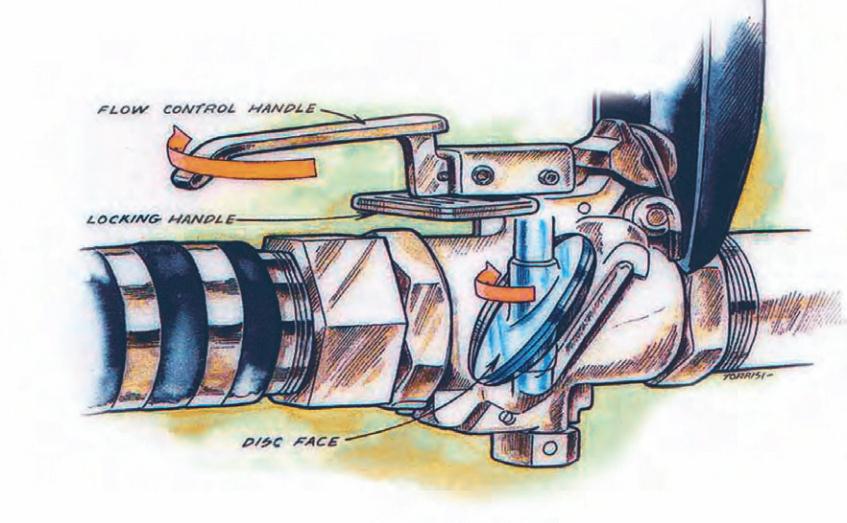

Facing discs in the coupler and adapter connect the assembly. The discs
swivel to open and close, keeping their faces totally dry.
Dry Link couplings trap fluids before they drip onto the floor or ground. Even small drips can
pollute or be dangerous or expensive. Disconnected Dry Link couplings are completely drip free.
The flow shut-off mechanism resembles a butterfly valve with very low flow restriction.
This design enhances flow while also reducing the risk of internal gunk-ups that can lead
to connection malfunctions. A safety interlock prevents accidental opening, and a unique
sealing arrangement results in the world’s most drip-free dry disconnect.
Disc Face
Protective Cover Protective
Cover
Protective
Cover
(not shown)
Protective Cover
(not shown)
Locking Handle
Swivel End
Disc Face
Locking Handle
Larger sizes Smaller sizes
Swivel End
Coupler Adapter Coupler Adapter
FM
APPROVED
