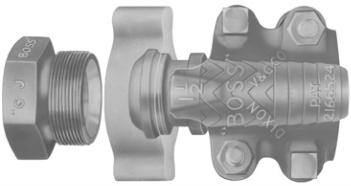

Positive Metal-to-Polymer Seal
•
A leakproof seal is formed when the metal head of the stem
makes contact with the patented polymer seat in the spud.
•
The non-metallic polymer seat resists most chemicals found
in manufacturing facilities. (reference corrosion resistance
chart on pages 600-605)
•
recommended for steam service up to
450°F
•
easy to seal
•
works with existing fittings
•
plated steel and / or iron
•
use with Boss clamps found on pages 98 and 99.
1
1/4", 3/8" and 6" come only with copper seat spuds
2
not to be used with #250, #275 or #306 Boss clamps
wing nut
thread
wing nut
thread
wing nut
thread
NPT
NPT
wing nut
thread
Boss couplings and the steam quick disconnects on page 91
are the only Dixon couplings recommended for steam service.
