Engineering Service
Our Engineering Department develops workable solutions to tough problems... high external heat, flame resistance, pressure
surges, hose flexing, unusual coupling end configurations requiring special clamp designs... these are only a few of the many
challenges Dixon has successfully met.
Some of the services our engineers perform include:
• Working with engineering and operating management to improve existing installations.
• Making a complete study of layout, clearances and other requirements to ensure correctly
engineered specifications for fittings.
• Preparing hose drawings and specifications for assurance that the hose and its connections
will accurately fit and function in their appropriate applications.

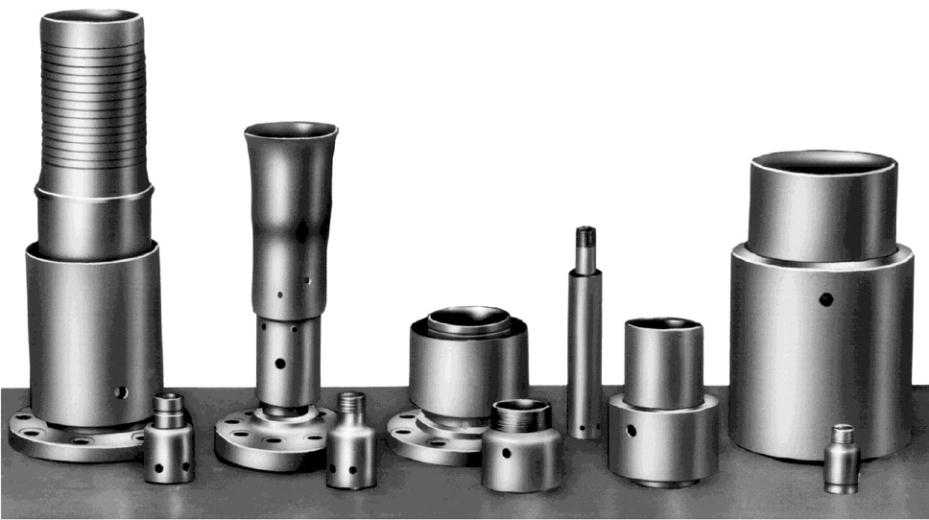

Illustrated below are several types of special design couplings. Each was engineered to function with maximum reliability in
meeting a specific service requirement but are also adaptable to other applications.
Custom Couplings
Dixon engineers will design, and the factory produce, special couplings to meet
unusual connection or other installation requirements. A typical example is the
coupling shown to the right, designed to provide reliable durability and safety in
connections on long lengths of oxygen hose tied into established piping in a steel
mill. Other "specials" might include lifting rings or hooks, bend shields, and heat
shields.
