Dixon Bayco's API coupler is completely modular so the coupler can be built with various face seal combinations
to be compatible with different alternative fuel / performance levels and applications. Two models are available:
bonded nose seal and replaceable nose seal.
• fully interlocked with 4" API adapter nose ring
• 4" TTMA inlet mounting flange
• 5 cam design for easy alignment and tight connection
• ball-end handle for easy, comfortable operation
• no special tools needed for maintenance
• shaft seals can be changed without removing coupler from
loading arm
Technical Specifications:
• weight: 20 lbs.
• maximum working pressure: 150 PSI
• peak surge pressure: 350 PSI
• operating temperature: -20°F to +400°F (Viton® seals)
• maximum flow rate: 600 GPM
• pressure drop: 3 to 4 PSI
Material Specifications:
• body: hard coated anodized A1 356 T6
• shroud: hard coated anodized A1 356 T6 with stainless steel
insert
• link, shaft, pin and crank: hardened
17-4PH stainless steel
• cam: CF8M stainless steel
• poppet bearing: ZA-12
• seals: Baylast™, Viton-B®, Viton ® GFLT
Seal Material Part # Price/E
Baylast™
Viton-B®
Viton® GFLT
5300
5300B
5300G
$2275.00
2502.50
2616.00
API coupler with replaceable nose seal
Seal Material Part # Price/E
Baylast™
Viton-B®
Viton® GFLT
5400
5400B
5400G
$2364.00
2600.40
2718.00
API coupler with bonded nose seal
• FT600 and FT620 are compatible with API thermistor and
optic configurations
• cord is available in coiled or straight lengths
• cord features a heavy highly visible safety orange jacket to
meet trip hazard requirements
• cord is bonded mechanically and has superior abrasion and
oil resistance
• cord sets are interchangeable with Scully and Civacon
• plug body is machined from 6061 aluminum and is color
coded Optic Blue or Thermistor Green
• button contacts are made from 316 stainless steel to prevent
corrosion or galling
• all other hardware is stainless steel
• all wiring is compatible with standard Scully color codes and
wiring number configurations
• the 9 pin conductor is shielded to be compatible with Scully
VIP system
Description Part # Price/E
replacement plug body
replacement 30' coiled cable
plug hanger
FT621
FT622
FT623
$525.15
428.65
305.55
replacement parts & accessories
Description Part # Price/E
plug with 30' coiled cable
plug with 20' straight cable
FT620
FT620S
$986.65
938.90

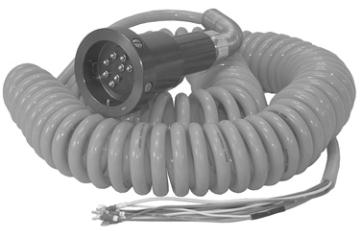

API Optic Assemblies
Model FT620
Description Part # Price/E
replacement plug body
replacement plug body for Canada
replacement 30' coiled cable
plug hanger
FT601
FT601C
FT602
FT603
$509.85
509.85
416.12
296.64
replacement parts & accessories
Description Part # Price/E
plug with 30' coiled cable
plug with 30' coiled cord for Canada
plug with 20' straight cable
plug with 20' straight cord for Canada
FT600
FT600C
FT600S
FT600SC
$986.65
986.65
938.90
938.90
API Thermistor Assemblies
Model FT600
API Compatible Rack Cords
