557 DPL410 877.963.4966 • www.dixonvalve.com
T
T
male adapter female coupler
Complete Units
Coupler Body
Inlet Ends
Parts List
Coupler
Size
Inlet
Size
Inlet
Type
Aluminum
Part # Price/E
3"
3"
3"
3"
4"
3"
male adapter
male adapter
female coupler
300300MAE
3004030MAE
300300FCE
$568.00
602.75
681.70
Inlet
Size
Inlet
Type
Aluminum
Part # Price/E
3"
4"
3"
male adapter
male adapter
female coupler
300-MAE
4030-MAE
300-FCE
$62.85
95.75
174.70
Size Aluminum
Part # Price/E
3" 300-TFG $507.00
plunger type handle
• aluminum body
• brass handle and cam arms with buna gasket
• steel bolts on inlet end
• plexiglass sight flow insert with buna seals

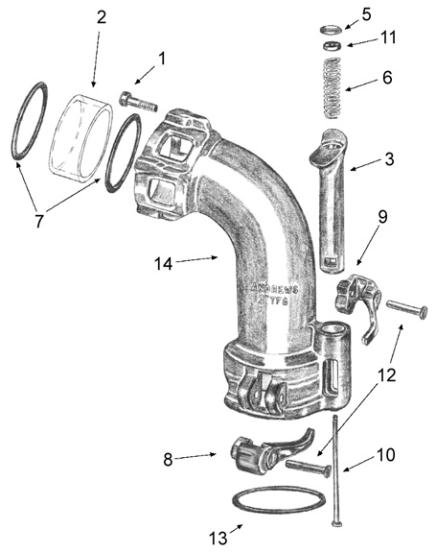

Item # Description Part # Price/E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
screw-inlet end
plexiglass-shell only
plunger
full grip plunger
plunger cap
spring
plexiglass gasket
right cam arm
left cam arm
rod
disc
pin
coupler gasket
body
P3-TFG-1
P3-TFG-2
P3-TFG-3
P3-TFG-4
P3-TFG-5
P3-TFG-6
P3-TFG-7
P3-TFG-8
P3-TFG-9
P3-TFG-10
P3-TFG-11
300-P
300-G-BU
P3-TFG-13
$1.30
28.90
60.80
154.60
5.00
6.80
3.25
41.20
42.00
7.15
8.80
2.10
1.20
---
