Page 515 - DixonCatalog20092010

513 DPL410 877.963.4966 • www.dixonvalve.com
V Size A B C D E Override Stainless Steel
Part #
110VAC
Voltage
-EA
24VDC
Voltage
-EG
12VDC
Voltage
-ET
220VAC
Voltage
-EK
24VAC
Voltage
-ES
1/4"
3/8"
1/2"
3/4"
1"
1¼"
1½"
2"
9.01
9.01
9.21
9.21
9.74
10.04
12.92
13.67
6.06
6.06
6.06
6.06
6.06
6.06
7.87
7.87
2.83
2.83
3.26
3.89
4.40
4.92
5.86
6.85
1.41
1.41
1.63
1.94
2.20
2.46
2.93
3.42
N/A
N/A
N/A
N/A
N/A
N/A
12.99
12.99
standard
standard
standard
standard
standard
standard
handwheel
handwheel
BV3IG*F-0251
BV3IG*F-0381
BV3IG*F-0501
BV3IG*F-0751
BV3IG*F-1001
BV3IG*F-1251
BV3IG*F-1501
BV3IG*F-2001
$1192.90
1192.90
1192.90
1380.00
1543.00
1825.50
2933.90
3834.80
$1192.90
1192.90
1192.90
1380.00
1543.00
1825.50
2933.90
3834.80
$1192.90
1192.90
1192.90
1380.00
1543.00
1825.50
2933.90
3834.80
$1192.90
1192.90
1192.90
1380.00
1543.00
1825.50
2933.90
3834.80
$1192.90
1192.90
1192.90
1380.00
1543.00
1825.50
2933.90
3834.80
Dimensions are approximate. Engineering dimensions are available upon request.
Specifications are subject to change without notice.

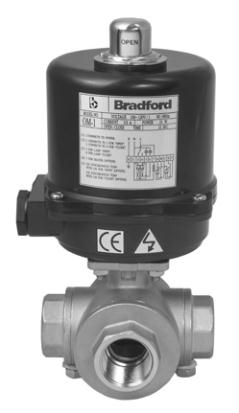

3-Way Stainless Ball Valve
• spring loaded stem packing
• blow-out proof stem
• 100% air tested under water at 80 PSI
• working pressure: ¼" to 1": 1000 PSI;
1¼" to 2": 800 PSI
• temperature range: -20°F to 450°F
• ISO 5211 mounting pad
• female NPT ends
• full port style
Electric Actuator
• lightweight powder coated aluminum alloy
housing
• NEMA 4/4X waterproof and dustproof
• H-insulation class
• manual over-ride standard: ½" - 1½"
• extended duty cycle induction motor
• high alloy steel gear train
• working temperature: -41°F to 140°F
• ISO 9001, CS, CE and CSA-C US Certified
• space heater is standard
• visual position indication
• RoHS compliant
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a
dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
Please consult the factory when dealing with these types of applications.
A wide variety of options are available: modulating, extra switches, transmitters, potentiometer, etc.
Contact the factory at 800.789.1718 or visit bradfordfittings.com for details.
¼" - 1¼" 1½" - 2"
Refer to page 633 for alternate flow paths.
Default Flow Paths
position A
position D
T port
position A
position B
L port
ØB
C D
A
ØB E
A
C
* T = t-port style
* L = l-port style
