Valves
Spring Return - 3 Piece (normally closed)
Double Acting - 3 Piece

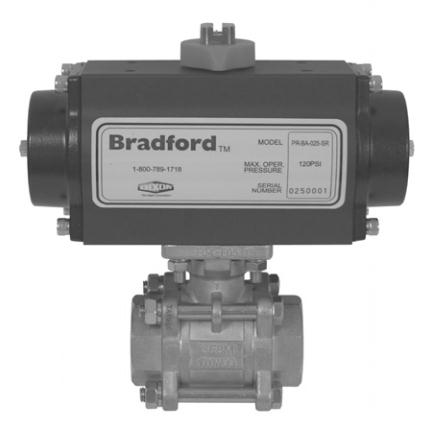

3-Piece Stainless Ball Valve
• blow-out proof stainless steel stem
• CF8M body and ball
• 15% glass reinforced RTFE seats
• ½" - 2" rated to 1000 PSI WOG; 3" rated to 800 PSI WOG
• temperature range: -40°F to 400°F
• ISO 5211 mounting pad
• swing out in-line easy maintenance
• spring loaded stem packing
Rack and Pinion Actuator
• bi-directional stops for ±5º travel adjustment
• 80 PSI plant air required
• maximum operating pressure: 120 PSI
• operating temperature range: -40ºF to 200ºF
• hard anodized aluminum body
• NAMUR mounting
• nickel plated anti-blowout pinion
• Buna-N O-rings
• visual position indication
• tested to one million cycles
Size F to F A B1 C Stainless Steel
Part # Price/E
½"
¾"
1"
1¼"
1½"
2"
3"
2.6
3.0
3.4
4.0
4.7
5.2
7.2
5.0
5.2
6.1
6.3
7.7
8.0
10.2
4.7
4.7
5.7
5.7
5.9
5.9
7.2
2.4
2.4
3.2
3.2
3.7
3.7
4.7
BV2IG-05011-BCC
BV2IG-07511-BCC
BV2IG-10011-BCC
BV2IG-12511-BCC
BV2IG-15011-BCC
BV2IG-20011-BCC
BV2IG-30011-BCC
$374.50
399.50
528.00
586.60
701.35
795.80
1644.50
Dimensions are approximate. Engineering dimensions are available
upon request. Specifications are subject to change without notice.
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example: Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a
dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
Please consult the factory when dealing with these types of applications.
A wide variety of switches, solenoids, positioners, etc., are available.
Contact the factory at 800.789.1718 or visit bradfordfittings.com for details.
Size F to F A B C Stainless Steel
Part # Price/E
½"
¾"
1"
1¼"
1½"
2"
3"
2.6
3.0
3.4
4.0
4.7
5.2
7.2
7.0
7.2
6.1
6.3
7.7
8.8
10.2
7.7
7.7
7.7
7.7
8.1
8.1
9.8
3.2
3.2
3.2
3.2
3.7
3.7
4.7
BV2IG-05011-BBC
BV2IG-07511-BBC
BV2IG-10011-BBC
BV2IG-12511-BBC
BV2IG-15011-BBC
BV2IG-20011-BBC
BV2IG-30011-BBC
$573.95
598.95
620.20
678.85
815.85
910.30
1768.60
Dimensions are approximate. Engineering dimensions are available
upon request. Specifications are subject to change without notice.
* bracket and coupler required for ½" and ¾" spring return actuator
line art shown with bracket and coupler
