506
DPL410
877.963.4966 • www.dixonvalve.com
N
Valves
3-Piece Stainless Steel Ball Valves
•
15% glass reinforced RTFE seats
•
swing-out design for easy maintenance
•
ISO 5211 mounting pad
•
316 stainless steel stem
•
CF8M body and ball
•
spring loaded stem packing using Belleville washers
•
temperature range:
-40°F
to
400°F
Size Port
Type
PSI @
65°F
Body
Length
Stainless Steel
Part #
Price/E
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
full
full
full
full
full
full
full
full
full
1000
1000
1000
1000
1000
1000
800
800
600
2.5"
2.9"
3.2"
3.7"
4.3"
4.8"
6.2"
7.5"
8.9"
3SSBV50
3SSBV75
3SSBV100
3SSBV125
3SSBV150
3SSBV200
3SSBV250
3SSBV300
3SSBV400
$79.75
104.75
151.55
210.15
274.25
368.75
791.35
1065.80
1941.50
female NPT x female NPT
female NPT x female NPT
Size
Port
Type
Stainless Steel
Part #
Price/E
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
reduced
reduced
reduced
reduced
reduced
reduced
reduced
reduced
SSBV25RP
SSBV38RP
SSBV50RP
SSBV75RP
SSBV100RP
SSBV125RP
SSBV150RP
SSBV200RP
$42.60
51.00
55.00
66.00
99.00
132.00
172.00
230.00
•

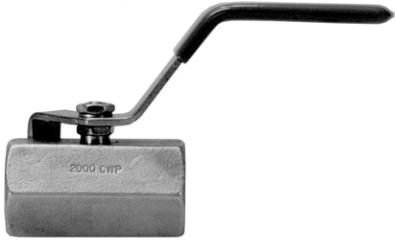

for use in water, oil and gas
•
¼" - 1" rated to
2000 PSI
(CWP);
1¼" - 2" rated to
1500 PSI
(CWP)
•
body conforms to ASTM A-351 Grade CF8M
•
ball is 316 stainless steel
•
PTFE, glass-filled seat
•
blow-out proof stem design
•
temperature range:
-60°F
to
450°F
2-Piece 316 Stainless Steel Domestic Ball Valves
•
rated to
1,000 PSI
CWP
•
rated to
150 PSI
saturated steam
•
vacuum service to 29 inches Hg
•
316 stainless body, ball and stem
•
PTFE seals
•
blow-out proof stem
•
vinyl handle cover
•
temperature range:
-40°F
to
400°F
Size
Port
Type
316 Stainless Steel
Part #
Price/E
¼"
3/8"
½"
¾"
1"
1¼"
1½"
2"
full
full
full
full
full
full
full
full
DSBV25
DSBV38
DSBV50
DSBV75
DSBV100
DSBV125
DSBV150
DSBV200
$82.00
82.00
86.00
115.00
160.00
200.00
315.00
390.00
female NPT x female NPT
sliding lock
mechanism
