456 DPL410 877.963.4966 • www.dixonvalve.com
M
Fire
Used to allow immediate and continuous flow of water at all times during deployment of hose. One-person operation. Use with
non-collapsible hose shown on page 457 (hose not included in price).
Standard Features:
• powder coated with an electrostatically-applied, thermally-fused, red polyester finish steel drum
• rims and universal mounting stand
• female NPT inlet with male NST outlet
Part #
Hose Size
and Capacity Dimensions (inches) Inlet
Size
(inches)
Outlet
Size
(inches)
Wt.
(lbs) Price/E
¾" 1" 1½" A B C D E F G
CFR47-1-100
CFR47-150-100
CFR47-1-200
CFR47-150-200
150
250
400
---
125
150
300
---
---
100
150
200
10½
10½
10½
10½
11½
20½
28
34
24
24
24
24
19¼
28¼
35¾
41¾
24
33
40½
46½
21¾
21¾
21¾
21¾
26
26
26
26
1
1½
1½
1½
1
1½
1½
1½
53
60
64
72
$1953.00
1953.00
2021.25
2021.25

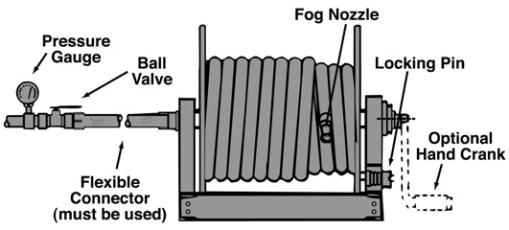

Note: A flexible connector assembly must be installed directly between the hose reel inlet hub and the water supply.
Failure to use the flexible connector assembly shall void the warranty.
Optional Accessories
Continuous Flow Hose Reel Covers
Cover for Dimensions Part # Price/E
CFR47-1-100
CFR47-1-200
CFR47-150-100
CFR47-150-200
26" x 20"
26" x 36"
26" x 29"
26" x 42"
CFR47-C1
CFR47-C2
CFR47-C3
CFR47-C4
$119.40
162.50
176.75
193.95
Description Part # Price/E
1" x 18" flexible connector
1½" x 18" flexible connector
hand crank
repair kit (contains O-ring, Teflon® retaining
ring for the inlet casting, spacer washer, 2 steel
retaining rings for the manifold)
DX2836
DX2839
CFR-HC
CFR-RK
$172.75
172.75
145.45
107.00
Global Continuous Flow Reel
(original Wirt & Knox design)
Part #
Hose Size
and Capacity Dimensions (inches) Inlet
Size
(inches)
Outlet
Size
(inches)
Wt.
(lbs) Price/E
¾" 1" 1½" A B C D E F G
FD47I-150-100 250 150 100 10 20 24 19 31 24¾ 26 1½ 1½ 92 $670.85
