Page 389 - DixonCatalog20092010

387

DPL410

877.963.4966 • www.dixonvalve.com

H

Size

Buna

Part #

Price/E

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

H5071-BU

H5072-BU

H5073-BU

H5074-BU

H5075-BU

H5076-BU

H5077-BU

H5078-BU

$1.15

1.15

1.30

1.75

•

replacement washers for 520-H female internally expanded

permanent couplings on pages 385 and 386

•

Dubl-Grip

®

female reattachables on page 388

Permanent Couplings for Pump Hose

The most economical and trouble-free couplings for gas pump hose. Serrations on the stem become imbedded in the hose

eliminating wicking and leakage. The shell extends beyond the stem to prevent cutting of interior walls. Tapered ends of stem

and shell protect hose when flexed.

•

Couplings provide tamper-proof static connection which cannot be broken without completely damaging coupling and hose.

•

internal expansion of stem to nominal ID of hose provides full flow

•

Broad, firm grip of coupling extends hose life by making it possible for hose to withstand more flexings.

•

Hand and electrically operated installation equipment are available. Consult factory for pricing and availability.

•

Caution

:

Reattach static wire if required

.

Hose

ID

Male

NPT

Hose

OD

Chrome Plated Brass

Part #

Price/E

5/8"

3/4"

1"

3/4"

1"

1-1/32"

1-9/64"

1-11/64"

1-13/64"

1-7/32"

1-17/64"

1-25/64"

1-29/64"

1-1/2"

1-9/16"

H5741

H5742

H5751

H5752

H5753

H5754

H5755

1

H5771

H5772

H5773

H5774

$14.25

14.25

16.10

26.30

29.75

1

thrust plate required

25000HTL15

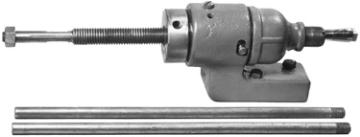

HB Coupling Expander Machine

•

hand operated, pull-through type expander

•

for use in a fixed location for small production runs or as a portable repair type expander

•

attaches sizes ¾" through 2" of the 520-H Series couplings, and all sizes of 570-H and 580-H Series couplings

•

expander tooling sold separately

Part #

Price/E

2500HB0000

$2865.00
