Rams securely attach Holedall couplings to hose. Five machines meet every hose service requirement.
Rams, are powerful finely engineered machines designed specifically to swage and internally expand Holedall couplings by
hydraulic pressure. Since each ram generates all the hydraulic pressure required to attach the Holedall coupling, one person
can easily operate the equipment.

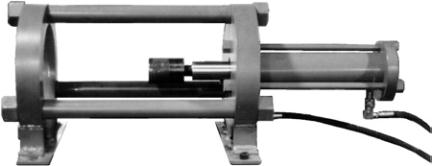

Specially designed ram for internally expanded couplings only.
Bench mounted model (optional stand available), producing
up to 10,000 PSI, for up to 15 tons of ram force. Capable of
expanding 1" through 3" steel fittings and ¾" through 4" brass
Holedall Petroleum fittings. The motor is ½ h.p., 115 volt 60
cycle, single phase with foot pedal.

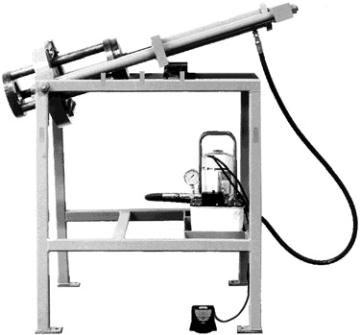

Free standing model producing up to 10,000 PSI of line
pressure for up to 25 tons of ram force. Capable of external
swaging ¼" through 4" ID hose and internal expanding 5/8"
through 4" ID hose, with proper equipment. The motor is ½
h.p., 115 volt 60 cycle, single phase with foot pedal. High
speed pump kit option is available.

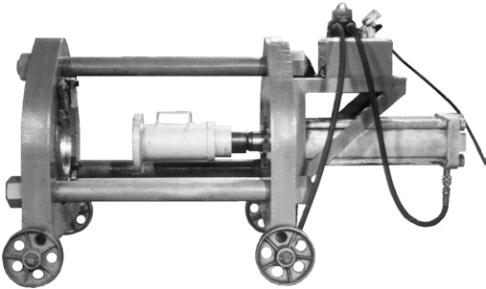

Bench mounted model (optional stand available), producing
up to 10,000 PSI, for up to 50 tons of ram force. Capable
of external swaging 1¼" through 6" ID hose and internal
expanding 5/8" through 6" ID hose, with proper equipment.
A 1-1/8 h.p., 115 volt, 60 cycle, single phase motor is standard
with remote, (220/440 volt motors are available).
Used for swaging Holedall fittings to hose from 1¼" through
10" ID With optional accessories, this ram may be used for
internally expanded couplings on hose from 1¼" through 6".
This machine is capable of producing up to 100 tons of ram
force. A 1-1/8 h.p., 115 volt, 60 cycle, single phase motor is
standard with remote, (220/440 volt motors are available).

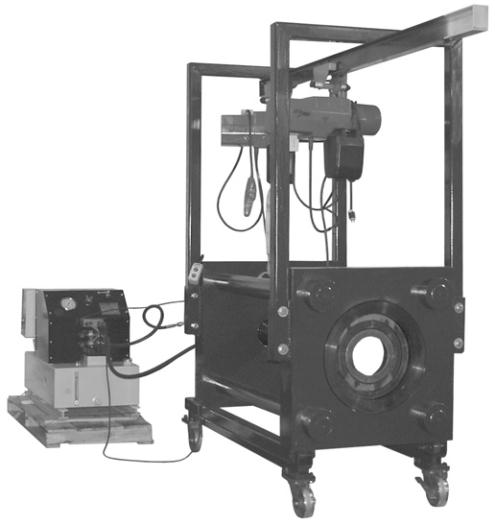

Used for swaging Holedall and Rotary fittings. This ram is
capable of producing up to 354 tons of ram force for swaging.
A 14" 150 lb. flange will fit through the bed plate. This ram has
36" of stroke. A 12.5 h.p., 230 volt, 60Hz, 3 phase motor is
standard with remote.
All Rams require dies of the proper size to reduce the ferrule to the proper diameter for a good grip on the hose. Pushers of the
proper size must be used on the end of the Ram to push the Holedall fitting through the die. Die and pusher selection depends
on the sizes and types of hoses being coupled. Ferrule recommendations and a Die Chart binder are available upon request.
Consult your Dixon representative for specific details.
15 Ton Ram
25 Ton Ram
50 Ton Ram
100 Ton Ram
350 Ton Ram
