Flo-Mate couplings offer maximum flow with an unrestricted flow path, permitting maximum temperature control and minimum
coupling size. Plugs are designed short so that they can be easily recessed below a molded surface to avoid damage (when
mold is changed or stored). Non-valved design should be used where maximum flow is needed and automatic shut-off is not
required. Suitable for use with hot oil, water glycol and high temperature water.
Sockets
(non-valved)
Plugs
•
socket seal is silicone
•
service pressure is
200 PSI
at ambient temperature (70°F)
•
sockets and sleeves are brass
•
sleeve spring is 302 stainless steel
•
locking balls are 404 stainless steel
Size Hose ID
Part #
Price/E Opt
Qty
1/4"
1/4"
1/4"
1/4"
3/8"
3/8"
3/8"
3/8"
1/2"
1/2"
1/2"
1/4"
1/4"
3/8"
3/8"
3/8"
3/8"
1/2"
1/2"
1/2"
1/2"
3/4"
FMC204
FMC204L *
FMC206
FMC206L *
FMC306
FMC306L *
FMC308
FMC308L *
FMC504
FMC504L *
FMC506L *
$8.85
10.10
9.40
9.40
11.60
11.70
11.55
11.90
27.55
31.30
31.60
10
10
10
10
5
5
5
5
5
5
5
straight hose shank
Size Hose ID
Part #
Price/E Opt
Qty
1/4"
1/4"
3/8"
3/8"
3/8"
3/8"
1/4"
3/8"
3/8"
3/8"
1/2"
1/2"
FMC214
FMC216L *
FMC316
FMC316L *
FMC318
FMC318L *
$15.60
15.70
15.65
17.85
15.50
17.85
10
10
5
5
5
5
90° hose shank
Size Hose ID
Part #
Price/E Opt
Qty
1/4"
5/16"
FMC225
$15.40
10

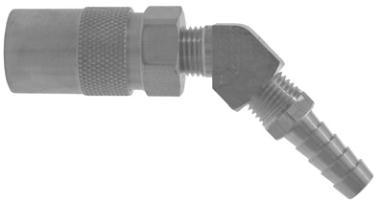

45° hose shank
* 'L' denotes push-on hose barb end (not pictured)
female NPT
Size Thread
Steel
Opt
Qty
Part #
Price/E
1/4"
1/4"
3/8"
3/8"
1/8"
1/4"
1/4"
3/8"
FMP251F
FMP252F
FMP352F
FMP353F
$2.60
2.90
2.15
2.45
25
25
25
25
Size Thread
Brass
Opt
Qty
Part #
Price/E
1/4"
1/4"
1/4"
3/8"
3/8"
3/8"
1/2"
1/2"
1/8"
1/4"
3/8"
1/4"
3/8"
1/2"
1/2"
3/4"
FMP251
FMP252
FMP253
FMP352
FMP353
FMP354
FMP554
FMP556
$1.85
2.00
2.60
2.20
2.40
5.05
4.85
6.55
25
25
25
25
25
25
25
25
male NPT
Over-pressurization could result in a sudden failure of the coupling causing severe bodily injury or death. Be sure to select the
proper coupling for your application and use it only within the specified service pressure ranges. Couplings do wear out. In order
to avoid severe bodily injury or death, couplings must be routinely checked for condition and replaced if necessary.
