341 DPL410 877.963.4966 • www.dixonvalve.com
I
C
Description Part # Price/E

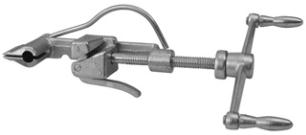

Clamping tool for band and
buckles
C2 $429.00
Description Part # Price/E
51960 adapter for installing
preformed clamps
51970 $114.00
Strap-Grip Saddles and Male Stems
Size Hose OD Plated Iron
from to Part # Price/pair
1½"
2"
3"
4"
6"
8"
1-13/16"
2-5/8"
3-1/2"
4-9/16"
6-1/2"
8-5/8"
2-1/8"
3"
3-7/8"
5-1/8"
7-1/16"
9-3/8"
SGS150
SGS200
SGS300
SGS400
SGS600
SGS800
$12.50
14.50
18.95
21.90
39.50
44.00
Size Plated Carbon Steel Stainless Steel
Part # Price/E Part # Price/E
1½"
2"
3"
4"
6"
LP21
LP26
LP36
LP46
LP66
$57.45
49.40
121.30
154.00
329.45
---
---
RLP36 1
RLP46 1
---
---
---
$215.00
364.00
---
schedule 40
Size Plated Carbon Steel
Part # Price/E
1½"
2"
LP21-80
LP26-80
$65.45
68.40
schedule 80 2
1 made from tubular steel
2 schedule 80 stems meet NFPA 58
saddles
male NPT x hose shank
Description Part # Price/E
Clamping tool for band and
buckles
51960 $141.50
Strap-Grip saddles are designed to provide greater resistance
to end pull than conventional band clamps alone. The male
fittings shown below are designed for use with Strap-Grip
saddles. Cam and Groove fittings are available on page 56.
Saddles are designed for use with 3/4" or 5/8" wide bands. A
band clamp should first be applied to OD to seal the hose in
sizes 3" and over. Then Strap-Grip saddles should be banded
on top of initial clamps to anchor the fitting in the hose.
