308

DPL410

877.963.4966 • www.dixonvalve.com

G

Brass

Rigid Tube x Push-On Hose Barb

Hose ID Tube OD

Brass

Opt Qty

Part #

Price/E

1/4"

3/8"

1/2"

5/8"

3/4"

3/16"

1/4"

5/16"

3/8"

1/2"

5/8"

3/4"

294-0403

294-0404

294-0405

294-0606

294-0808

294-1010

294-1212

$2.82

2.12

2.53

2.87

4.24

6.40

8.72

100

50

25

Push-On Hose Menders

90° Push-On Hose Barb x Male NPTF Elbows

Hose ID NPTF Thread

Brass

Opt Qty

Part #

Price/E

1/4"

3/8"

1/2"

3/4"

1/8"-27

1/4"-18

1/8"-27

1/4"-18

3/8"-18

1/2"-14

3/4"-14

273-0402

273-0404

273-0602

273-0604

273-0606

273-0806

273-0808

273-1208

273-1212

$3.70

4.49

5.40

5.11

6.23

7.93

9.80

20.19

18.98

100

50

25

10

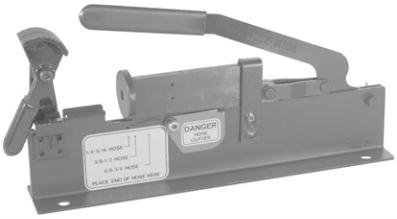

Tool for Push-On Fittings

•

cuts push-on style hose and inserts the fitting

•

Built-in cutter slices through ¼" - ¾" ID reinforced push-on

hose without fraying.

•

Clamp hose into tool's vice and apply light pressure on

handle to drive in the fitting.

•

tool has four 7/16" diameter mounting holes for bench

mounting

•

overall size is 13-1/2" long x 2-3/8" wide x 7" height

Size

Part #

Price/E

all

270AT

$980.18

Assembly Instructions:

1. Trim hose end with smooth square cut

2. Lubricate either push-on fitting, hose or both.

3. Insert push-on fitting into hose until first barb is in hose.

4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until

end of hose is covered by yellow plastic cap.

Disassembly Instructions:

1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick

barbs when cutting the hose.

2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Caution:

Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose

completely concealed by the plastic cap.

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only

. No hose clamps or ferrules are needed.

Lok-On fittings will properly grip Lok-On hose only when pushed all the way in, with the cut end of the hose completely

concealed by the plastic cap.

Hose ID

Brass

Stainless

Opt

Qty

Part # Price/E Part # Price/E

1/4"

5/16"

3/8"

1/2"

5/8"

3/4"

1"

BPM2

BPM25

BPM3

BPM4

BPM5

BPM6

BPM8

$2.41

2.58

2.87

4.49

6.40

7.73

12.88

SSPM2

---

SSPM3

SSPM4

---

$32.65

---

37.50

39.41

---

100

50

25

10
