FRL's are designed for air service only, unless otherwise indicated.
SCFM ratings at 150 PSIG inlet pressure.
•
high flow capacity
•
4.09 oz. bowl
•
can be filled under pressure
•
manual drain
•
maximum operating conditions:
transparent bowl:
150 PSIG
(10.3 bar) and
32°F
to
125°F
(0°C to 52°C)
metal bowl:
250 PSIG
(17.2 bar) and
32°F
to
150°F
(0°C to
65.5°C)
•
To adjust and set oil delivery rate the unit must be
pressurized and air must be flowing through the unit. Turn
the sight dome, located on the top of the unit, counter
clockwise to initiate oil delivery. If flow increases or
decreases, the oil delivery rate will increase or decrease
proportionally. Turning the sight dome clockwise will stop all
oil delivery.
•
quick-disconnect metal bowl guard with integral safety latch
•
siphon tube filter provides clean lubricant downstream
•
10 oz. bowl
•
can be filled under pressure
•
adjustable oil feed
•
maximum operating conditions:
transparent bowl:
150 PSIG
(10.3 bar) and
32°F
to
125°F
(0°C to 52°C)
metal bowl:
200 PSIG
(13.8 bar) and
32°F
to
150°F
(0°C to
65.5°C)
•
The rate of oil delivery may be controlled by turning the
adjusting screw counter clockwise for more and clockwise
for less oil delivery. If flow increases or decreases, the oil
delivery rate will increase or decrease proportionally.
1.60 (41)
Bowl Removal
Clearance
8.66 (220)
2.31 (59)
2.36 (60)
Flow Guide
®
The elastomer disc-shaped device is located in the throat of all Wilkerson lubricators and automatically maintains a constant ratio
of oil flow to airflow regardless of changing rates of airflow. This allows one lubricator to serve several pneumatic components
operating together or intermittently.
Type of oil to use:
For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break
up into a mist, i.e., Mobil DTE light or comparable oil. Do not use any synthetic oil or oils containing additives or solvents. See
page 131 for air tool lubricants.
See pages 218-220 for lubricator accessories.
* metal bowl has sight gauge with brass petcock drain

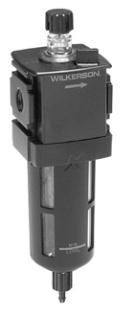

Wilkerson EconOmist
®
Standard Lubricators
Wilkerson EconOmist
®
Compact Lubricators
Size SCFM
With Transparent Bowl
With Metal Bowl
Part #
Price/E
Part #
Price/E
1/4"
3/8"
1/2"
88
90
96
L18-02A
L18-03A
L18-04A
$114.05
114.05
114.05
L18-02AMB
L18-03AMB
L18-04AMB
$128.30
128.30
128.30
Size SCFM
With Transparent Bowl
With Metal Bowl *
Part #
Price/E
Part #
Price/E
1/4"
3/8"
1/2"
35
60
128
L26-02A
L26-03A
L26-04A
$157.20
157.20
157.20
L26-02AMB
L26-03AMB
L26-04AMB
$175.55
175.55
175.55
