140
DPL410
877.963.4966 • www.dixonvalve.com
E
Air
Part #
Price/E
PG700
$53.75
Extended Nozzle Pistol Grip Safety Blow Gun
Part #
Price/E
ENBG1
$29.00

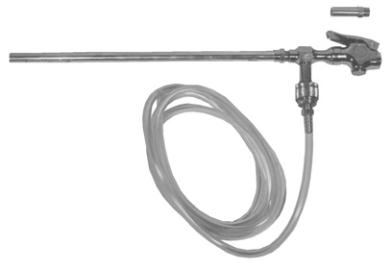

Hydro-Blast Cleaning Tool and Siphon
should not be used with mineral spirits
•
uses siphon to spray solvents or detergent solutions
•
uses regular garden hose plus compressed air to blast off
dirt and residue
•
can be used with hot or cold water, valve body stays cool
even when used with hot water
•
used in garages and factories to blast caked-on dirt from
vehicles and equipment
•
¼" female NPT inlet
•
complete, ready to use, includes: valve body, 2" and 15"
extensions, six foot siphon tubing and adapter for garden
hose
Part #
Price/E
D230
$210.00
The tubing supplied is vinyl and the internal seals in the valve body are Buna-N. Consult chemical resistance charts for
compatibility of solvents before putting gun into solvent service. Use safety equipment when using this tool. Eye and
skin protection are necessary.
•
conforms to U.S. Department of Labor, OSHA Standard
1910.242 (B) allowing a maximum of 30 PSI outlet pressure
at the nozzle when dead-ended
•
conforms to U.S. Department of Labor, OSHA Standard
1910.95 regulating noise level exposure
•
conforms to Title 41, Walsh-Healy Rules and Regulations
P50-204.8, Safety and Health Standards
•
Contoured pistol-grip for safe, comfortable handling, even
with greasy hands.
•
convenient hang-up hook
•
¼" female NPT inlet
•
Safety glasses or shield must be worn when using
any blow gun.
•
conforms to U.S. Dept. of Labor, OSHA Standard 1910.242
(B) allowing a maximum of 30 PSI outlet pressure at the
nozzle when dead-ended
•
conforms to U.S. Dept. of Labor, OSHA Standard 1910.95
regulating noise level exposure
•
conforms to Title 41, Walsh-Healy Rules and Regulations
P50-204.8 Safety and Health Standards
•
Slender 4" extended nozzle allows access to hard to reach
places and holes as small as .200".
•
variable output trigger enables user to control air flow
•
Hook design near trigger provides finger protection as well
as easy storage.
•
lightweight to help minimize user fatigue.
•
Side holes allow air to escape if nozzle tip is dead-ended,
thus preventing back pressure buildup.
•
pressure rating:
150 PSI
•
¼" female NPT inlet
•
Safety glasses or shield must be worn when using
any blow gun.
