132 DPL410 877.963.4966 • www.dixonvalve.com
E
Air
Winter grade air tool lubricant that prevents air line, air tool and in-line lubricator freeze-up..
1 gallon 1 pint

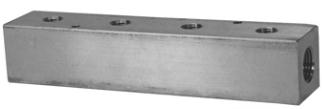

Bar Manifolds
• maximum working pressure is 300 PSI at ambient
temperature (70°F)
• brass hex head plugs sold on page 303
Aluminum A B C D E F G H J
Part # Price/E
AMF32
AMF42
AMF43
$71.95
71.95
71.95
1/4"
1/4"
3/8"
7-5/8"
7-5/8"
8"
7/8"
1-1/8"
1-1/8"
1-1/4"
1-1/2"
1-1/2"
1-7/8"
1-7/8"
2"
3-3/4"
3-3/4"
4"
1"
1"
1"
3/8"
1/2"
1/2"
.20"
.20"
.20"
3 in 1 Manifolds
Applications:
• supplies 3 air operated tools from a single hose, permits use
of air by more than one mechanic
• mount to pipe at workbench or overhead
• different tools in the shop use different styles of couplers,
mount 3 different style couplers on one manifold
NPT Inlet
(1)
NPT Outlet
(3)
Aluminum
Part # Price/E
1/4"
3/8"
1/2"
1/4"
1/4"
1/4"
D3404
D3406
D3408
$18.55
17.80
18.85
2 in 1 Manifolds
Applications:
• supplies 2 air operated tools from a single hose, permits use
of air by more than one mechanic
• mount to pipe at workbench or overhead
• different tools in the shop use different styles of couplers,
mount 2 different style couplers on one manifold
NPT Inlet
(1)
NPT Outlet
(2)
Aluminum
Part # Price/E
1/4"
3/8"
1/2"
1/4"
1/4"
1/4"
D2404
D2406
D2408
$10.00
10.00
10.00
The bar manifold can be mounted on a wall or work bench, safely distributing four hose lines to a work area.
Size Part # Price/E Opt Qty
1 pint
1 gallon
DATL016W
DATL128W
$21.00
135.40
12
4
• can be poured directly into tool or used with air line
lubricators
• performance is good to -45°F
