117 DPL410 877.963.4966 • www.dixonvalve.com
A
• C31-08AMB 1" FRL with metal bowls and auto drain filter
• FBV100 1" brass ball valve and AM12 air king on inlet port
• BBV100DTW 2-way ball valve installed between regulator
and lubricator provides option for non-lubricated air
• heavy duty frame protects air prep components
• operating conditions:
maximum pressure: 250 PSIG
temperature range: 40°F to 150°F
SCFM: 320

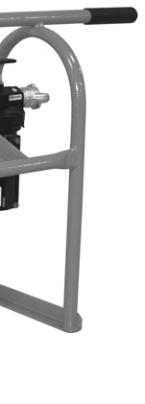

Provides downstream air preparation with protective frame and
includes the following components:
Size Part # Price/E
1" C31-08FRAME $1840.00
FRL with protective frame
Wilkerson Combination Unit with Protective Frame
Size Part # Price/E
2" inlet, ¾" outlets 1217AR-4AKWF $4475.00
ASME air tank with fittings and Watts filter
Designed to remove compressed air contaminants such as
water, compressor oil, dirt, pipe scale and water particles from
the air supply at the point of entry into the ASME air tank.
• includes basic 1217AR-4AK ASME manifold assembly
• F602-16WJR 2" auto drain filter with 26 ounce metal bowl
and related plumbing installed on the inlet port of the ASME
air tank
• Air supply hose connects directly to GM28 2" male spud on
the filter air inlet.
• includes a B27SC wing nut cap with a chain
