Pressure Recommendations
1. The chart on pages 10 - 13 is intended as a guide only. It only applies to metal couplings as shown for ambient temperature (70°F)
applications with true I.D. hose. It assumes new Dixon supplied couplings, new Dixon supplied clamps, new quality hose and proper
installation by a qualified assembler using Dixon procedures and equipment. Temperature can affect the coupling retention. For
questions relating to temperatures other than ambient (70°F) contact the hose manufacturer or Dixon at 1-800-355-1991.
2. This chart does not apply to non-Dixon products, with used hose, in non-approved or unsupported applications or in non-standard
assemblies.
3. Do not use this chart if it conflicts with the hose manufacturer’s recommendations.
4. All hose assemblies should be pressure tested to hose manufacturers or Rubber Manufacturers Association (R.M.A.) specifications
prior to being put into service.
5. Our test experience indicates that coupling retention can vary with changes in hose design. For pressure ratings other than those
listed and shown, or if questions arise, please call Dixon Valve & Coupling Company at 1-800-355-1991 for assistance.
6. All hose assembly components must be compatible with the materials and environments with which they are to come in contact.
7. Dixon recommends that all hose assemblies be marked with the assembly working pressure and media of the intended application.
Under no circumstances should the assembly working pressure exceed the working pressure of the lowest rated component
(coupling, clamp, ferrule or hose).
8. For further safety information refer to pages 2-7.

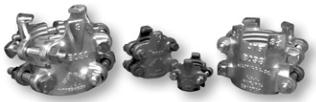

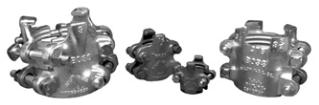

Clamps and Ferrules
Boss Interlocking Clamps Preformed Clamps Internal Expansion
Air King Interlocking Clamps Double Bolt Clamps Internal Expansion Petroleum
Crimp Swage / Crimp Flat Seal
Band & Buckle
