Hose Couplings
Dixon Powhatan 2007 8-1 1-800-355-1991
Style Brute Expanders
Model 2
X-Pander
Compact Hand Pump

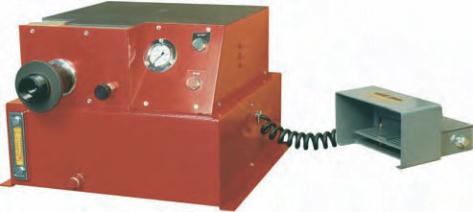

Bench Model Electric/Hydraulic
• Designed for forestry service, fire departments,
small distributors and ski areas.
• All-in-one design means fewer parts and no hydraulic
connections making the X-Pander reliable and service free.
• May be used to attached 1" thru 3" couplings
• Ideal for in-house use or mounted in a service van
for field repairs
• Size: 13" wide x 17" deep x 10" high
• Designed for hose manufacturers and higher volume
distributors and fire departments.
• May be used to attach 1" thru 6" couplings
• 3,000 lb pump, 2,500 lb. workable
• 3,450 RPM, 1½ h.p., single phase, 220 volt motor
• Cylinder has 6" stroke, 4" bore, and 38,000 lbs of total
thrust
• Oil capacity: 9½ gallons
• Manually set external pressure relief valve
• Size: 22" wide x 22" deep x 16" high
Note: Brute expanders do not include any expansion unit assemblies. They must be ordered separately, see below.
Expansion Unit Assemblies
Part #
16154
16101-RH
16171
Description
1½"
1½" Rack
2½"
(Storz also)
Part #
Brute2
Weight
400 lbs.
Part #
BruteXpand
Weight
45 lbs.
