Hoses
Dixon Powhatan 2007 7-2 1-800-355-1991

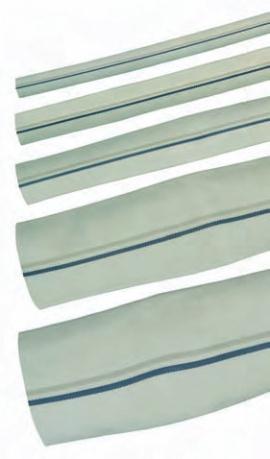

All Synthetic Mill Hose
Ideal for open end discharge applications.
Not intended for fire fighting service.
• Other lengths, threads and couplings are also available. Consult the factory for pricing and availability.
* Working pressures can be achieved using appropriate expansion ring couplings.
Under no circumstance should the hose be used beyond the working pressure of the fittings to which it is coupled.
Assembled hose should be hydrostatically proof tested before use, and thereafter in accordance with NFPA 1962.
• Outer construction: single jacket, all synthetic
• Tube construction: black, extruded synthetic rubber
• Rated Pressure: 250 PSI
• Working Pressure: 112 PSI
• Uncoupled
Dixon
Part #
M10-50UC
M10-100UC
M15-25UC
M15-50UC
M15-100UC
M20-25UC
M20-50UC
M20-100UC
M25-25UC
M25-50UC
M25-100UC
M30-25UC
M30-50UC
M30-100UC
M40-25UC
M40-50UC
M40-100UC
M60-50UC
Hose
Size
1"
1"
1½"
1½"
1½"
2"
2"
2"
2½"
2½"
2½"
3"
3"
3"
4"
4"
4"
6"
Bowl
Size
1-1/4"
1-1/4"
1-11/16"
1-11/16"
1-11/16"
2-3/8"
2-3/8"
2-3/8"
2-11/16"
2-11/16"
2-11/16"
3-3/8"
3-3/8"
3-3/8"
4-3/8"
4-3/8"
4-3/8"
6-3/8"
Length
50'
100'
25'
50'
100'
25'
50'
100'
25'
50'
100'
25'
50'
100'
25'
50'
100'
50'
• Coupled with female and male expansion ring couplings
Dixon
Part #
M15-50RAF
M15100RAF
M15-50RBF
M15100RBF
M15-50PBF
M20-50RAF
M20100RAF
M25-50RAF
M25100RAF
M25-50RBF
M25100RBF
Thread
NH (NST)
1½"
1½"
1½"
1½"
1½"
2"
2"
2½"
2½"
2½"
2½"
Coupling
Type
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, brass
Rocker lug, brass
Pin lug, brass
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, brass
Rocker lug, brass
Length
50'
100'
50'
100'
50'
50'
100'
50'
100'
50'
100'
• Coupled with female and male expansion ring couplings
Dixon
Part #
M15-50RAS
M15100RAS
M20-50RAS
M20100RAS
M20-50RBS
M20100RBS
M25-50RAS
Thread
NPSH
1½"
1½"
2"
2"
2"
2"
2½"
Coupling
Type
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, aluminum
Rocker lug, brass
Rocker lug, brass
Rocker lug, aluminum
Length
50'
100'
50'
100'
50'
100'
50'
