Connections
Dixon Powhatan 2007 2-21 1-800-355-1991

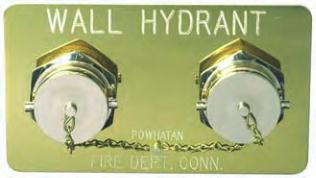

Wall Hydrant Concealed Type Siamese Assembly
(without clappers)
22-230
Dimensions (inches)
Wall Plate
24-385
B A
14 8
C
7-5/8
E
4-15/16
F
3-5/8
A complete unit consiting of:
• (1) 23-389 straight body
• (1) 24-386 plate branded 'Wall Hydrant'
• (2) 23-272 female and male connections
• (2) 17-126 caps with chains
• Cast brass
• Finish: polished or polished chrome
• Other branding and finishes are also available, consult the factory for pricing and
availability
-P polished
-C polished chrome plated
Dixon
Part #
WHCSA4025F-P
WHCSA4025F-C
WHCSA6025F-P
WHCSA6025F-C
Inlet Female
NPT
4"
6"
(2) Outlet Male
NH (NST)
Powhatan
Part #
22-230-00001
22-230-00003
22-230-00002
22-230-00004
2½"
2½"
