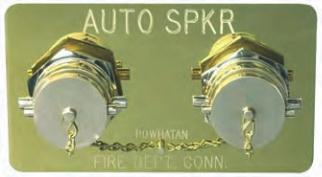

Wall Plates for Double Clapper Siamese Assemblies
24-385
Dimensions (inches)
Wall Plate
24-385
B A
14 8
C
7-5/8
E
4-15/16
F
3-5/8
• Branded: 'standpipe' or 'auto-spkr'
• Finish: polished or polished chrome plated
-P polished
-C polished chrome plated
WP2HAS-P
WP2HAS-C
WP2HSP-P
WP2HSP-C
Dixon
Part #
Hole
Size
3-3/8"
3-3/8"
Powhatan
Part #
24-385-00228
24-385-00236
24-385-00237
24-385-00229
AutoSprinkler
AutoSprinkler
StandPipe
StandPipe
Branding
• Other branding and finishes are also available, consult the factory for pricing and availability
