Connections
Dixon Powhatan 2007 2-9 1-800-355-1991
Double Clapper Concealed Type Siamese Assemblies
22-229
22-229
Dimensions (inches)
Wall Plate
24-385
B A
14 8
C
7-5/8
E
4-15/16
F
3-5/8

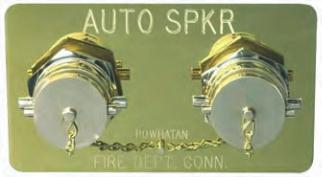

The model 22-229 Double Clapper Siamese is a complete unit

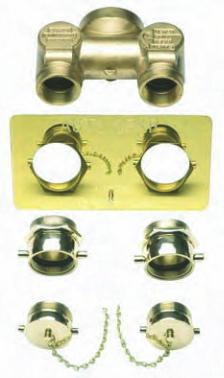

consisting of the following six parts:
• (1) 23-393 reversible double clapper angle pattern
concealed body, or 23-387 straight body
• (1) 24-385 plate
• (2) 23-270 double female connections
• (2) 17-127 plugs with chains
• Cast brass
• Branded: 'standpipe', 'auto-spkr', 'auto-spkr.-standpipe'
• Finish: cast, polished or polished chrome
• For use up to 250 PSI
-P polished
-C polished chrome plated
The unique design of clappers on the 23-393 is fully reversible with a perpendicular trunion
allowing one body to be installed for top and bottom connections.
• Other branding and finishes are also available, consult the factory for pricing and availability
Dixon
Part #
Outlet
Female NPT
4"
4"
4"
4"
4"
6"
6"
6"
6"
2½"
2½"
2½"
2½"
3"
2½"
2½"
2½"
2½"
Powhatan
Part #
22-229-00001
22-229-00002
22-229-00003
22-229-00004
22-229-00009
22-229-00005
22-229-00006
22-229-00007
22-229-00008
(2) Inlets
Female NH(NST)
AutoSprinkler
StandPipe
AutoSprinkler
StandPipe
AutoSprinkler
AutoSprinkler
StandPipe
AutoSprinkler
StandPipe
Branding
