Valves
Dixon Powhatan 2007 1-13 1-800-355-1991

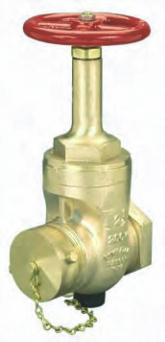

Wedge Disc Gate Valves - Rising Stem
19-280
• Cast brass
• Red iron wheel handle, with cap and chain
• Solid wedge disc with tapered seats
• U/L listed
Not recommended for wet standpipe systems.
Use AV250 (18-157) for this purpose.

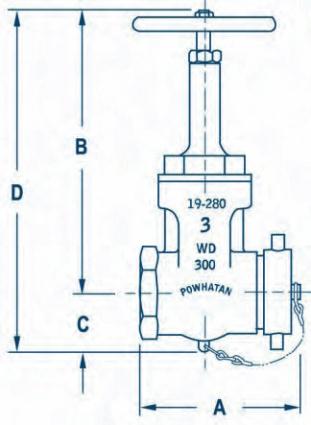

Size Dimensions (inches)
A B / closed C
6 1/2"
6 3/16"
2½"
3" x 2½"
D / closed D / open
11
11
2 1/2"
2 1/2"
13 1/2"
13 1/2"
16 1/4"
16 1/4"
Weight
(lbs.)
15 lbs.-7 oz.
17 lbs.-4 oz.
Dixon
Part #
RWDGV250F
RWDGV3025F
Inlet
Female
NPT
2½"
3"
Powhatan
Part #
19-280-50000
19-280-50001
Outlet
Male
NH (NST)
2½"
2½"
WP
PSI
200
300
