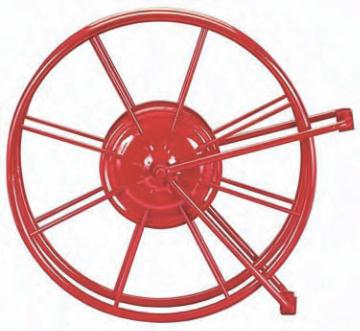

Style V Swing Type Hose Storage Reels
Style V Swing Type Hose Storage Reel Covers
• Drum storage of collapsible hose avoids damaging kinks,
for longer hose life
• Pivot mounting permits reel to swing to the proper angle
preventing twists and kinks
• Rugged all-steel construction
• Open sides allow faster hose drying, to prevent mold and
mildew
• Red polyester powder coat finish
• Wall mounting is standard
• Optional pipe mounting brackets are available
Dixon
Part #
FHR-V1
FHR-V2
FHR-V5
FHR-V7
Wt.
Lbs.
20
23
26
32
Double Row Reels: Style V5 (when used with 1½" hose only), and V7 have space between the reel sides to accommodate
two widths of hose side by side, for maximum capacity in minimum space
Part # Rack
Hose
Size
Dimensions (inches )
A B C
FHR-V1
FHR-V2
FHR-V5
FHR-V5
FHR-V7
8"
8"
8"
8"
8"
Hose Capacity (feet)
Single
Jacket
Double
Jacket
1½" - 1¾"
2" - 2½"
1½" - 1¾"
2" - 2½"
2" - 2½"
100
150
300
150
-
75
100
200
100
200
50
75
150
75
150
D E F G H J
3"
3"
5-1/2"
5-1/2"
9"
7-1/2"
7-1/2"
9-1/2"
9-1/2"
13"
21"
26"
26"
26"
26"
23"
29"
30"
30"
31"
27"
33"
34"
34"
37-1/2"
2"
2"
2"
2"
5"
11-3/8"
15"
13"
13"
13-1/4"
-
-
-
-
3"
• Fluorescent red vinyl coated nylon with Velcro™ closures
• Printed on both sides
Part # Wt.
Lbs. Dimensions
FHR-V2
FHR-V5
FHR-V7
FHR-V9-15
Cover
for
FHR-C1
FHR-C
FHR-C
FHR-C7
FHR-C9-15
21" x 6"
26" x 8"
26" x 8"
26" x 11"
36" x 9"
1.5
1.5
