Page 136 - DixonSanitaryCatalog20082010

134 Dixon Sanitary 2010 800.789.1718
Butterfy Valves
S
Butterfy
Valves
Item Description Quantity Material
spring
hub
hex socket bolt
handle
1D
2D
3D
4D
304
CF8
304
304
1
1
1
1
Push Handle
sprocket
handle
hex socket bolt
pin
spring
trigger
1C
2C
3C
4C
5C
6C
CF8
CF8
304
304
304
CF8
1
1
1
1
1
1
Trigger Handle
hub
hex socket screw
handle shaft
knob
hub housing
1B
2B
3B
4B
5B
CF8
304
304
polymer
CF8
1
1
1
1
1
Infnite Handle
hub housing
hub
handle shaft
hex socket screw
spring
knob
1A
2A
3A
4A
5A
6A
CF8
CF8
304
304
304
polymer
1
1
1
1
1
1
Pull Handle
body half
disc
seat
bushing
hex nut
bolt
optional wing nut kit
1
2
3
4
5
6
6W
CF8M
CF8M
silicone
EPDM
Viton ®
polyacetal
304
304
304
2
1
1
2
4*
4*
4*
Valve
* 4" and 8" valves have 6 bolts and nuts
* 6" valve has 8 bolts and nuts
B5101 Series Butterfy Valves
Repair Kit contains:
(1) seat
(2) bushings

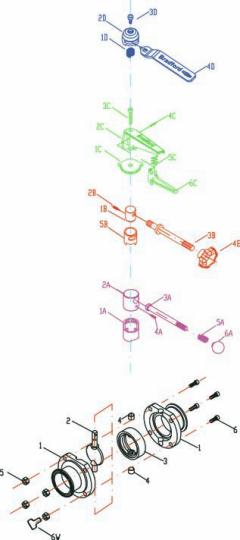

Bill of Materials
Repair Kits
Size Red Silicone Black EPDM Brown Viton®
1" B5101-RKS100 B5101-RKE100 B5101-RKV100
1½" B5101-RKS150 B5101-RKE150 B5101-RKV150
2" B5101-RKS200 B5101-RKE200 B5101-RKV200
2½" B5101-RKS250 B5101-RKE250 B5101-RKV250
3" B5101-RKS300 B5101-RKE300 B5101-RKV300
4" B5101-RKS400 B5101-RKE400 B5101-RKS400
6" B5101-RKS600 B5101-RKE600 ---
8" --- B5101-RKE800 ---
