Grain Belt
#246 1 Ply 440 1/4 x 1/8 Grade 2
Part Number: 20029852
Construction is a straight warp synthetic carcass design made especially to withstand
abrasive applications. The single ply construction offers exceptional life, low stretch, high load
carrying capacity, and superior resistance to ripping and tearing.
Temp. Range: -25°F to 225°F. Thickness: 9/16". Weight: .295 piw.
Min. Pulley Diameter: 20". Recommended Recessed Fasteners: #190 Solid Plate,
#550 Bolt On, #R6 Rivet.
#21 2 Ply 150 1/32 x Bare Back Moderate Oil Resistance
Part Number: 20027200
Excellent light-duty thin conveyor belt with oil and abrasion resistant cover. Good selection
for light-duty use where resistance to oils is required. Used in agriculture, wood, waste, and
recycling industries.
Temp. Range: 0°F to 250°F. Thickness: 9/64". Weight: .075 piw.
Min. Pulley Diameter: 4". Recommended Fasteners: #2 Hook, #125 Staple, #15 Alligator.
#23A 2 Ply 220 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Part Number: 20021628
Special compounds in this belt make it an excellent choice for handling grain and other
applications requiring resistance to mineral, animal, or vegetable fats. It is also static
conductive and MSHA approved for use on grain conveyors and in grain elevators where
static charges must be held to minimums. Belt is fame retardant.
Temp. Range: 0°F to 250°F. Thickness: 15/64". Weight: .095 piw.
Min. Pulley Diameter: 12" for conveyor / 14" for elevator. Recommended Fasteners:
#140 Solid Plate, #187 Staple, #375 Bolt On, #R5 Rivet.
#14A 3 Ply 600 3/8 x 3/32 Grade 2
Part Number: 20027210
Excellent heavy-duty conveyor belt with extra thick abrasion resistant covers. Often used
in mining applications requiring cut and gouge resistance. Good choice for scrap metal
applications on troughing conveyors. SBR covers provide excellent fex life and resistance to
abrasion, making it a good buy for troughing conveyor applications.
Temp. Range: -25°F to 225°F. Thickness: 23/32". Weight: .375 piw.
Min. Pulley Diameter: 20". Recommended Recessed Fasteners: #1-1/2" Solid Plate, #R6
Rivet.
#25A 3 Ply 330 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Part Number: 20021630
Often used on elevator legs and in applications requiring resistance to mineral, animal, or
vegetable fats. Good selection for grain conveyor applications and bucket elevators. Also
used where equally thick covers permit belt to be turned over for longer wear.
Temp. Range: 0°F to 250°F. Thickness: 17/64". Weight: .130 piw.
Min. Pulley Diameter: 16" for conveyor / 18" for elevator. Recommended Fasteners:
#140 Solid Plate, #550 Bolt On, #R5 Rivet.
Heavy- Duty I ndustr i al / Gra i n Belt

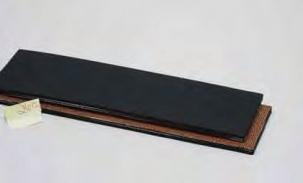

#26C 2 Ply 220 1/8 x Bare Back Moderate Oil Resistance
Part Number: 20029690
Excellent light to medium duty conveyor belt has moderately thick cover with moderate oil
resistance. Often used in handling wood products and recycling.
Temp. Range: 0°F to 250°F. Thickness: 1/4". Weight: .150 piw.
Min. Pulley Diameter: 10". Recommended Fasteners: #140 Solid Plate, #187 Staple, #375
Bolt On, #R2 Rivet.
