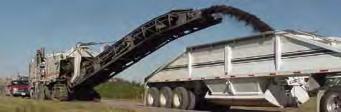

V-Cleat Road-Away Milling Belt
Apache Hose & Belting offers high performance U-shaped and V-shaped integrally molded
Chevron belts for ultimate capacity and superior performance.
These 1" high molded cleats feature a rugged wide base design and tapered ends to
operate at high speeds and wrap small pulleys; thus eliminating the risk of cleats peeling
from the top cover. High strength rubber covers and cleats offer excellent resistance to
cutting, gouging, puncturing, and abrasion.
Apache’s special endless splicing techniques assure excellent strength, fexibility and
performance in this brutal application.
Tapered
Cleat End
Tapered leading and trailing
edges are designed to reduce
the stress on belts that
operate on small pulleys.
V-Cleat Road-Away Milling Belt
Cleat Pattern Cross Section
1/2
12
1
Molded U-Cleat
Road-Away Milling Belt
Road-Away belts are offered in
3 distinct belt constructions:
2 ply 220# 3/16 x 1/16
2 ply 400# 3/16 x 1/16
3 ply 225# 3/16 x 1/16
Five different cleat widths are
available: 16" (1/2" high), 20", 26",
30", 32".
In addition, Apache can provide
Road-Away belts in metric widths as
well.
Mechanical fasteners are also
available.
