23
#94A
PVC 100 White Cover x Mini Skim Coat
Part Number: 20035400
Belt provides a high service yield and is an excellent value for most food processing and
harvesting uses. Fabricated cleats, fanges, v-guides, and other value added profles can be
hot welded to surfaces. Meets FDA requirements; is USDA accepted.
Temp. Range:
20°F to 180°F.
Thickness:
7/64".
Weight:
.050 piw.
Min. Pulley Diameter:
1-1/2".
Recommended Fasteners:
#1SP Hook, #62 Staple,
#7 Alligator.

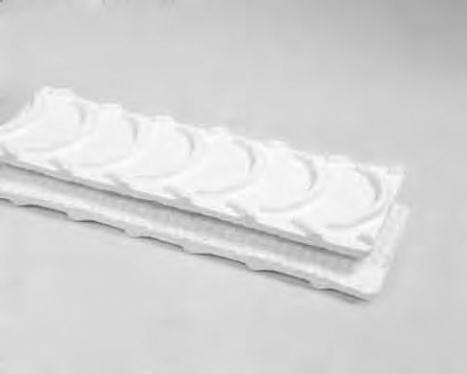

#239
PVC 120 White Crescent Top x Friction Surface
Part Number: 20035535
Crescent half moon shaped profles project from belt surface to effectively move packaged
and bulk materials. Profle design assists in draining liquids and crescents overlap to assure
smooth and quiet running on return rolls. Meets FDA requirements; is USDA accepted.
Temp. Range:
20°F to 180°F.
Thickness:
15/64".
Weight:
.085 piw.
Min. Pulley Diameter:
2".
Recommended Fasteners:
#1SP Hook, #62 Staple,
#7 Alligator.
#95
PVC 120 White Cover x Mini Skim Coat
Part Number: 20035496
Heavier duty belt that is an excellent value for most food processing and harvesting uses.
Fabricated cleats, fanges, v-guides, and other value added profles can be hot welded to
surfaces. Meets FDA requirements; is USDA accepted.
Temp. Range:
20°F to 180°F.
Thickness:
9/64".
Weight:
.070 piw.
Min. Pulley Diameter:
2-1/2".
Recommended Fasteners:
#1 Hook, #125 Staple,
#15 Alligator.
#95B
PVC 120 White Chevron Top II x Mini Skim Coat
Part Number: 20033550
Excellent belt for moving bulk or free fowing materials, such as grains, food stuffs, feeds,
and fertilizers up steep inclines. Alternating rows of solid PVC chevrons form a herringbone
pattern which returns belt smoothly and quietly. Compounds resist grease, fat, vegetable, and
mineral oil exposure. Meets FDA requirements; is USDA accepted.
Temp. Range:
20°F to 180°F.
Thickness:
7/32".
Weight:
.072 piw.
Min. Pulley Diameter:
2-1/2".
Recommended Fasteners:
#1 Hook, #125 Staple,
#15 Alligator.
Wh i te Food Belt
#98
3 Ply Polyester 105 White Butyl 1/32 x Friction Surface
Part Number: 20028650
This specifcation is designed for extreme temperature variations (-65°F to 300°F). Used on
heat sealing machines, heat shrink tunnels, and other high temperature applications. This
belt is also used in cold rooms and freezers where low temperatures are the norm. Meets
FDA requirements; is USDA accepted.
Temp. Range:
-65°F to 300°F.
Thickness:
7/64".
Weight:
.053 piw.
Min. Pulley Diameter:
1-1/2" in hot conditions, 4" in cold.
Recommended Fasteners:
#1SP Hook, #62 Staple, #7 Alligator.
#99
3 Ply Polyester 105 White Tyler Wire x Friction Surface
Part Number: 20028700
This specifcation features an impression capable of high traction on moderate inclines. Often
used in bakeries, produce applications, and for handling packages and small parts. It is non-
marking, oil and grease resistant. Meets FDA requirements, is USDA accepted.
Temp. Range:
0°F to 250°F.
Thickness:
1/8".
Weight:
.060 piw.
Min. Pulley Diameter:
2-1/2".
Recommended Fasteners:
#1 Hook, #125 Staple,
#7 Alligator.
