PVC Elevator Belt
21

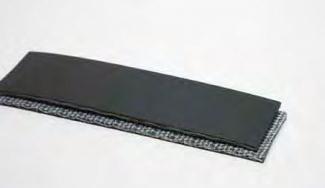

#67A PVC 200 Black Cover x Friction Surface
Part Number: 20038207
Heavier duty PVC belt proven for long wearing, high performance, and problem free material
handling. Also popular as heavy-duty package and bulk product conveyor belt for both slider
and roller bed conveyors.
Temp. Range: 20°F to 180°F. Thickness: 15/64". Weight: .117 piw.
Min. Pulley Diameter: 6". Recommended Fasteners: #4 Hook, #187 Staple, #27 Alligator.
#69A PVC 200 Black Oil Resistant Static Conductive Cover x Cover
Part Number: 20038206
Heavier duty PVC belt proven for long wearing, high performance and problem free material
handling applications. Regularly used in the feed and grain industries. Also popular as heavy-
duty package and bulk product conveying belt for both troughed roller bed conveyors and
elevator applications.
Temp. Range: 20°F to 180°F. Thickness: 1/4". Weight: .142 piw.
Min. Pulley Diameter: 6". Recommended Fasteners: #4 Hook, #187 Staple, #27 Alligator,
#R5 Rivet.
#66A PVC 150 Black Cover x Cover
Part Number: 20038199
Proven belt for long wearing, high performance, problem free material handling applications.
Ideal for moving bulk materials, chemicals, fertilizers, and grain. Ideal for a variety of roller
bed and troughed applications. Characteristics include low stretch, high strength, good
fastener retention, with superior rip, tear, and gouge resistance.
Temp. Range: 20°F to 180°F. Thickness: 13/64". Weight: .100 piw.
Min. Pulley Diameter: 4". Recommended Fasteners: #3 Hook, #187 Staple, #25 Alligator.
PVC - RMV / PVC Elevator Belt

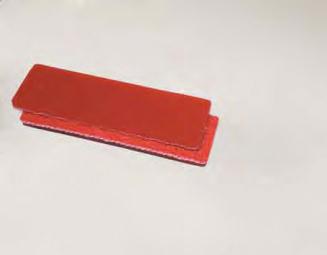

#268 150 HC x F Red PU
Part Number: 20040546
Strong, tear resistant solid woven polyester carcass with 1/8" / 3mm thick red urethane cover
for ultimate wear and durability. Resists the effects of oils and chemicals; as well as provides
excellent cutting, gouging and abrasion resistance. Applications include metal stamping,
glass, tile, brick and recycling.
Temp. Range: 20°F to 180°F. Thickness: 13/64". Weight: .105 piw.
Min. Pulley Diameter: 4". Recommended Fasteners: #187 Staple, #25 Alligator.
#72 PVC 350 Black Oil Resistant Static Conductive Cover x Cover
Part Number: 20039000
Commonly used for elevator belting in the feed and grain industries. Features low stretch,
trouble-free operation, high bolt retention, resistant to grain oils, fre, moisture, mildew, and
rot. MSHA Approved.
Temp. Range: 20°F to 180°F. Thickness: 5/16". Weight: .158 piw.
Min. Pulley Diameter: 8" for conveyors / 12" for elevators.
Recommended Fasteners: #140 Solid Plate, #550 Bolt On, #R5 Rivet, #45 Alligator.
#69B PVC 250 Black Oil Resistant Static Conductive Cover x Cover
Part Number: 20038500
Commonly used for elevator belting in the feed and grain industries. Oil resistant, and static
conductive qualities. This belt will not mildew or rot, MSHA approved, moisture resistant, and
has high bolt retention for bucket attachments.
Temp. Range: 20°F to 180°F. Thickness: 5/16". Weight: .150 piw.
Min. Pulley Diameter: 8". Recommended Fasteners: #140 Solid Plate, #550 Bolt On,
#R5 Rivet, #35 Alligator.
