• Standard shank Investment Cast
Universal Hose Ends are for use
with bands or light duty ferrules.
• The “shorty” shank model is
designed specifically for crimping
with light duty ferrules.
E Couplings & Safety Couplings for Air and Water Hose
UNIVERSAL COUPLINGS
AND UNIVERSALOCK™
COUPLINGS
Features & Benefits
• Mate with domestic and imported
universal couplings.
• UniversaLocks automatically lock
onto mating coupling.
• Interlock groove locks ferrule into place
for the ultimate in holding power.
• Crimped assemblies are low profile and
eliminate sharp edges from
bands and bolts.
• Cast ductile iron meets ASTM A536
specification.
• Washers manufactured from nitrile
for superior oil resistance
Recommended hose attachment
• Interlocking ferrules
• Preformed bands (Section I)
• Interlocking bolt clamps (Page 25)
Investment Cast
Universal Hose Ends
• Investment casting provides a high
quality, detailed, hose-end surface
finish while eliminating the need for
more costly machining.
• The performance of our Investment
Cast Universal Hose Ends is equal to
the performance of our machined
versions, but at a lower cost.
Nitrogen Kills!
Reduce the risk of disaster!
Use UniversaLocks, Single-Locks
and Double-Locks for easy, safe,
line dedication.
All three couplings meet
OSHA regulation 29CFR1915.131 and
MSHA 30 CFR65.13021 requirements
for air hose couplings. The fine for an
unpinned/unlocked air hose coupling
can be $800 or more per infraction.
CampbellCrimpnology™ offers
hose assembly systems for all
your air applications:
UL RECOGNIZED
Patent no. 5,779,277
UniversaLock
SINGLE-LOCK
(Bowes-style) and
DOUBLE-LOCK
(Thor-style)
COUPLINGS
Features & Benefits
• Automatically locks onto mate.
• Interlock groove locks ferrule
into place for the ultimate in
holding power.
• Crimped assemblies are low
profile and eliminate sharp edges
from bands and bolts.
Recommended
hose attachment
• Interlocking ferrules (Section G)
• Preformed bands (Section I)
VALVELOCK COUPLINGS
Features & Benefits
• Automatically locks onto mate.
• When engaged the coupling is open.
• When disengaged the coupling shuts,
exhausting air pressure on
the tool side.
Recommended
hose attachment
• Preformed bands (Section I)

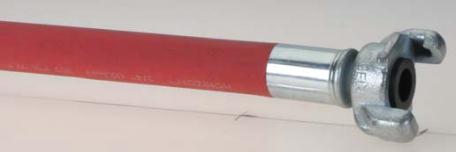

Investment Cast
Universal
Hose Ends:
Short,
Crimp-Specific
Shank (left) and
Standard Shank
(right)
NEW!
UniversaLock Ferrule Air 300 300 300
UniversaLock Bolt Clamp Air 150 150 150
Universal Ferrule Air 150 150 150
Universal Bolt Clamp Air 150 150 150
Single-Lock Coupling Ferrule Air 300 300 300
Double-Lock Coupling Ferrule Air 300 300 300
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type2 1/2 3/4 1
MAXIMUM SYSTEM
WORKING PRESSURE
(PSI @ 70°F)
SEE NOTE 1
See footnotes 1, 2, and 6 on Page 1
